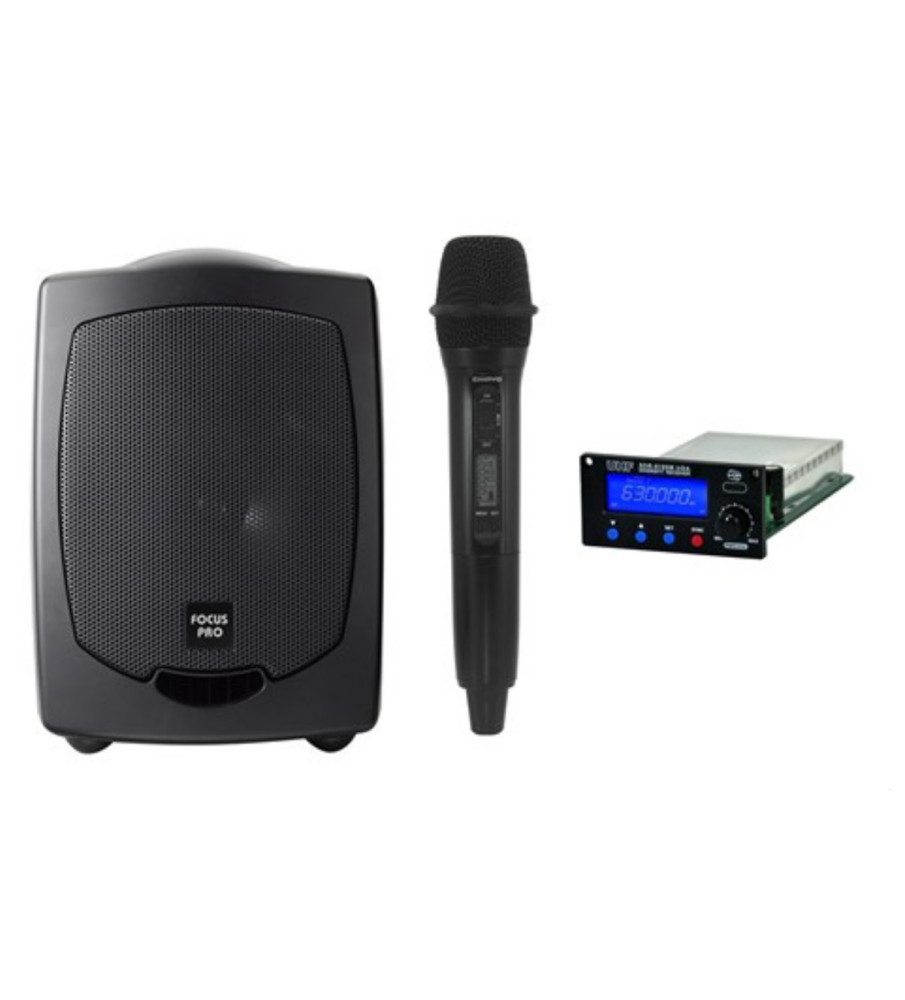

FOCUS PRO PORTABLE PA MIC KIT

FOCUS-PRO
Features:

·         High efficiency Class D amplifier produces MAX. 70W audio output (MAX. 140W with external speaker)

·         All-in-one! Easy to operate in both indoors and outdoors.

·         Portable amp system eliminates all cables so you can take it anywhere!

·         70W speaker system 6 1/2" full range driver

·         1 x 6.35mm Mic and 1 x 6.35 mm Line input.

·         Up to 2 diversity receiver modules with 100 frequencies. (order seperarately CH-SDR8200M)

·         6.35 mm auxillary out.

·         6.35 mm Speaker out for an external 4-ohm passive speaker

·         Voice priority function automatically ducks music during speech (switchable).

·         2-band EQ for Mic. 3-band EQ for music.

·         Tripod stand mountable with ST40.

·         2 power modes: Internal Rechargeable battery & DC jack

·         Up to to 20 hours operating time per charge with Li-Ion batteries

·         Ships with DPRB600M Dig rec/player with USB and Bluetooth

·         Includes SB21 carry bag.

SDR8200M-5A UHF MODULE

100 CH TRUE DIV UHF MODULE BAND 5A

SQ5100D-5A HANDHELD MIC
Features:

·         Clear and intuitive LCD display for easy operation and quick set-up.

·         Patented IrDA technology for 2-way data transfer between transmitter and receiver.

·         Slide switch to lock transmitter on stand-by mode.

·         3-step power control to switch between ON-MUTE-OFF status.

·         Various microphone modules for versatile, professional live sound.

·         Operating time up to 16 hours with 2 AA batteries.

·         Matched battery charger: HC-92.

·         (Optional, use with rechargeable batteries only.)

·         Sturdy ABS housing.

Warranty Information

Kit Components

Code

Item

Qty

CH-FOCUSPRO-00PC

Focus Pro Port Bt Only No Mod FOCUSPRO-00PC Chiayo

1.0

CH-KITASSEMBLY

Kit assembly to be completed by Amber Service Dept. Expect up to 48 hr delay in shipment.

1.0

CH-SDR8200M-5A

SDR8200M 100Ch True Div Uhf RX Module Chiayo

2.0

CH-SQ5100D-5A

SQ5100D 100 Ch H/Held Dyn Mic 520Mhz Chiayo

2.0

Technical Specifications

Brands

Chiayo Electronics

Microphone Type

Portable PA

: CH-FOPROHH-5A
