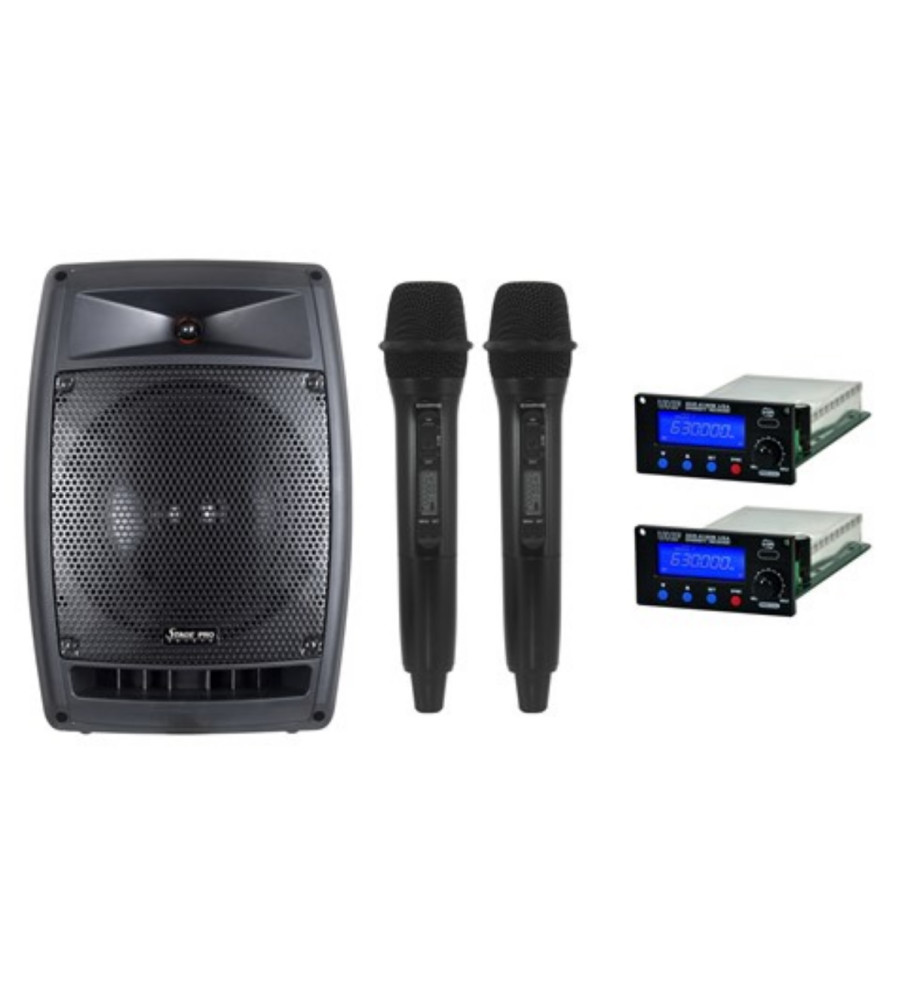

Chiayo CH-STPROHH-5A Stage Pro Portable PA + BT 2 Handheld w/less mics Band 5A-520-526 MHZ
Chiayo CH-STPROHH-5A
Stage Pro Portable PA Mic Kit
Chiayo CH-STPROHH-5A
Stage Pro Portable PA Mic Kit
STAGE PRO PORTABLE PA MIC KIT
STAGE PRO provides four module slots for installing receiver, transmitting and MP3 recorder player modules. It can playback music by pairing the smartphone with the integrated Bluetooth receiver. Audio inputs include 3.5Ø, RCA and two 6.3Ø instrument jacks with independently adjustable volume. Audio outputs to an external amplifier or recorder via the 6.3Ø or RCA jacks, or to an external active speaker via the XLR jack. Its versatile and considerate design successfully combines sound and functionality.
Exceptional listening experience
Built-in 200W class-D power amplifier drives 8” woofer and 1” tweeter and easily satisfies the amplification requirement of large events with a 500-1000 crowd.It can also connect to CHIAYO 12" subwoofer, bringing an unprecedented quality sound experience.
Multiple musical sensations
Volume and treble, meddle and bass equalizers specific to music, adding a variety of sound controls based on user's need.
Loudness compensation
Loudness compensation automatically boosts high and low sound frequencies. Even at low volume levels, you can clearly hear the treble and bass effects and enjoy the most natural sound playback.
Show personal unique sound
Adjustable treble, bass effects and echo for wired and wireless microphones. Echo can be enabled/disabled as required.
STAGE PRO
PORTABLE WIRELESS MIXER PA SYSTEM
Specifications
· Model STAGE PRO
· Max power output 200W, 4Ω load (class D)
· Speaker system 8"LF + 1"HF & electronic crossover
· Frequency response 50Hz-20KHz±3dB
· T.H.D. < 0.5%
· Audio input MIC in x2 (Ø6.3mm/XLR COMBO)
· LINE in x2 (RCA L/R, Ø3.5mm)
· Instrument in x2 (Ø6.3mm) DIGITAL in (USB)
· BLUETOOTH in
· Audio output LINE out (RCA L/R)
· ACTIVE out (XLR)
· Power supply 100-240V AC, 30-32V DC / 4A
· Battery Lead-Acid (12V / 5Ah) x2 or
· Lithium (25.9V / 7.8Ah) x1
· Operating time Lead-Acid: 5-6 hours in music, >10 hours in speech.
· Lithium: 8-10 hours in music, >12 hours in speech
· Charging time Lead-Acid: about 6 hours.
· Lithium: about 8 hours
· Dimensions (mm) 290 x 250 x 424
· Weight (kg) Lead-Acid: 12.5.
· Lithium: 9.5
SQ5100D-5A HANDHELD MIC
Features:
· Clear and intuitive LCD display for easy operation and quick set-up.
· Patented IrDA technology for 2-way data transfer between transmitter and receiver.
· Slide switch to lock transmitter on stand-by mode.
· 3-step power control to switch between ON-MUTE-OFF status.
· Various microphone modules for versatile, professional live sound.
· Operating time up to 16 hours with 2 AA batteries.
· Matched battery charger: HC-92.
· (Optional, use with rechargeable batteries only.)
· Sturdy ABS housing.
SDR8200M-5A UHF MODULE
100 CH TRUE DIV UHF MODULE BAND 5A
Warranty Information
Kit Components
Code
Item
Qty
CH-KITASSEMBLY
Kit assembly to be completed by Amber Service Dept. Expect up to 48 hr delay in shipment.
1.0
CH-SDR8200M-5A
SDR8200M 100Ch True Div Uhf RX Module Chiayo
2.0
CH-SQ5100D-5A
SQ5100D 100 Ch H/Held Dyn Mic 520Mhz Chiayo
2.0
CH-STPRO-00D01B
Stage Port PA w/bluetooth & DPR-500M record/player w/ USB/SD + remote
1.0
Technical Specifications
|
Brands |
Chiayo Electronics |
|
Microphone Type |
Portable PA |
