The C414 XLII reference multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. The C414 XLIIÂ’s slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.

General Specifications

  • Audio frequency bandwidth 20 - 20000 Hz
  • Equivalent noise level 6 dB-A
  • Sensitivity 23 mV/Pa
  • Signal to Noise 88 dB-A
  • Preattenuation Pad -6; -12; -18 dB
  • Bass cut filter 160; 80; 40 Hz
  • Electrical impedance 200 Ohms
  • Recommended load impedance 2200 Ohms
  • Polar Patterns Omnidirectional, Wide Cardioid, Cardioid, Hypercardioid, and Figure of Eight

Audio Output

  • Type Balanced XLR
  • Gender Male
  • Contacts 3-pin

Powering Interface

  • Voltage 44 to 52 V
  • Current 4.5 mAv

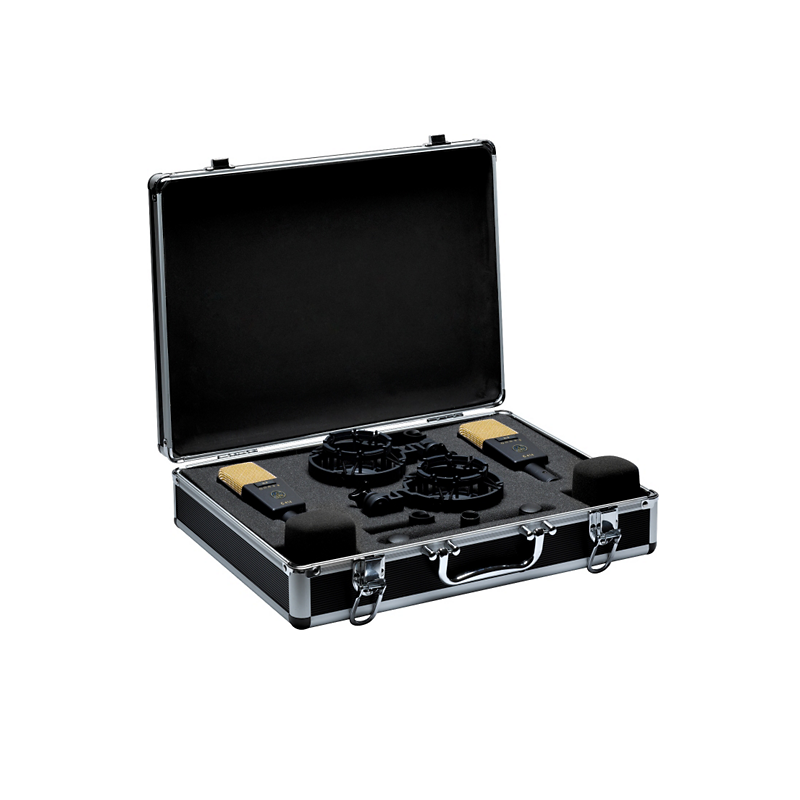

: AKG C-414XLIIST
