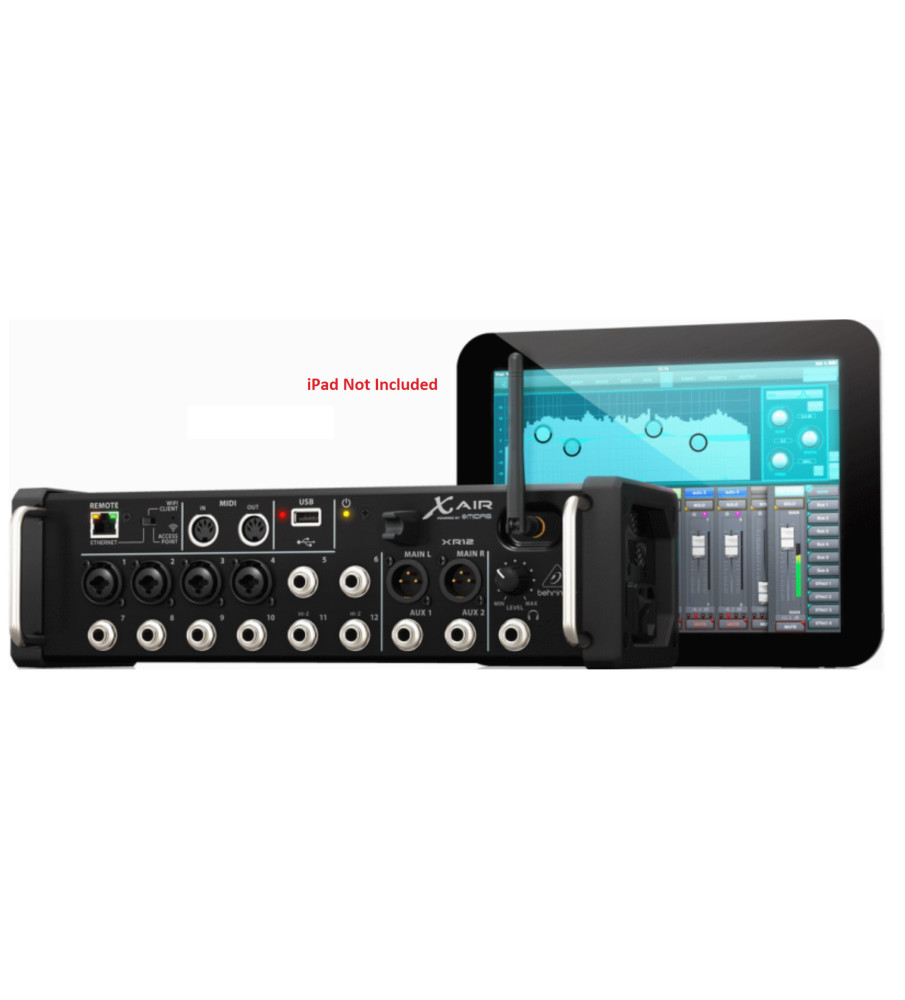

BEHRINGER X AIR XR12 DIGITAL MIXER
Order code: XR12
12-Input Digital Mixer for iPad/Android Tablets with 4 Programmable Midas Preamps, 8 Line Inputs, Integrated WiFi Module and USB Stereo Recorder
The BEHRINGER X32 completely changed the game by rethinking what is possible from a digital mixer – and over 100,000 users are enjoying the results. Now, that same incredible technology has been incorporated into a small, but incredibly powerful, rack-mountable mixer that will forever change both the way you record – and the way you play live music.
The revolutionary XR12 is a powerhouse 12 input portable/rack-mountable mixer for iPad and Android tablets, and is ideally suited for both live and studio applications, thanks to its 4 award-winning MIDAS-designed mic preamps, convenient integrated WiFi module for wireless control, plus USB connectivity for file storage, system updates and uncompressed stereo recordings via the USB Stereo Recorder. We’ve also included the rack ears and protective bumpers for added flexibility in your studio and stage applications.
The freedom to move around and manipulate all parameters of your mix with the free iOS and PC apps lets you dial in the perfect sound from anywhere in the venue – or the tracking room! Advanced engineering and meticulous design deliver stellar sonic performance at an extremely affordable price – changing the game once again.
MIDAS – The Legend in Sound Quality
Ever since its formation in the 1970s, MIDAS has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, legendary MIDAS consoles such as the XL4 and Heritage H3000 quickly became industry standards.
MIDAS has earned their impeccable reputation due to their no-compromise approach for audio and build quality and in particular for their Award-winning Mic Preamps which are considered by industry experts as the industry’s best sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.
BEHRINGER is proud to incorporate MIDAS designed mic preamps for the ultimate in high-quality audio reproduction in both live and studio environments. Find out more about MIDAS’ amazing legacy by visiting their extensive website.
Built-In Tri-Mode Wifi Router
Designed for the ultimate in mobility, the XR12 comes with an integrated Wifi module for direct control of your mixer’s functions – without the need to setup and configure an external router. The XR12 gives you the freedom to focus on your mix, while allowing you to move about the venue to experience what every part of the audience is hearing. Plus you can adjust live monitor wedges from the artist’s perspective – or better yet, let them mix their own IEMs and floor monitors via their own tablets.
| Number of processing channels |
16 input channels, 1 stereo USB return channel, 4 stereo FX return channels, 6 aux buses, main LR |
| Internal effects engines |
4 true stereo |
| Signal processing |
40-bit floating point |
| A/D-D/A conversion (Cirrus Logic A/D CS5368, D/A CS4385) |
24-bit @ 44.1 / 48 kHz, 114 dB A/D dynamic range |
| Analog I/O latency* |
0.8 ms |
| Programmable mic preamps, designed by Midas |
4 XLR/TRS combo jacks, balanced |
| Line inputs |
8 TRS, balanced |
| Main outputs |
2 XLR, balanced |
| Aux outputs |
2 TRS, balanced |
| Phones outputs |
1 TRS |
| MIDI inputs / outputs |
1/1 DIN |
| Ethernet |
1 RJ45 |
| USB port |
Type A |
| Preamp design |
Midas |
| THD + noise, 20 dB gain, 0 dBu out |
< 0.005%, A-weighted |
| Phantom power, switchable per input |
48 V |
| Equivalent input noise level, XLR (input shorted |
-128 dBu, A-weighted |
| CMRR, XLR, @ 20 dB gain (typical) |
>60 dB |
| CMRR, XLR, @ 40 dB gain |
>65 dB |
| Frequency range, @ 48 kHz sample rate, 0 dB to -1 dB |
10 Hz - 22 kHz |
| Dynamic range, analog mic in to analog out (typical |
104 dB |
| A/D dynamic range, mic preamp to converter (typical) |
109 dB |
| D/A dynamic range, converter and output |
108 dB |
| Cross talk rejection @ 1 kHz, adjacent channels |
90 dB |
| Mic input impedance XLR jack, unbal. / bal. |
5 kΩ / 10 kΩ |
| Non clip maximum input level, XLR |
+23 dBu |
| Hi-Z input impedance TRS jack, unbal. / bal. |
1 MΩ / 2 MΩ |
| Line input impedance TRS jack, unbal. / bal. |
20 kΩ / 40 kΩ |
| Non clip maximum input level, TRS |
+21 dBu |
| Output impedance, XLR, unbal. / bal. |
50 Ω / 50 Ω |
| Output level, XLR, nom./max. |
+4 dBu / +16 dBu |
| Output impedance, TRS, unbal. / bal. |
50 Ω / 50 Ω |
| Output level, TRS, nom./max. |
+4 dBu / +16 dBu |
| Phones output impedance / level |
40 Ω / +35 dBm (stereo) |
| Residual noise level, XLR and TRS |
-92 dBu, A-weighted |
| Antenna |
External, SMA connector, 50 Ω |
| Access Point, number of clients |
Max. 4 |
| IEEE 802.11 b/g standard |
2.4 GHz |
| Frequency Range |
2,412-2,462 MHz |
| WLAN channels (Wifi Client, Access Point) |
1-11 / 1-11 |
| Max Output Power |
19 dBm (802.11b) / 18 dBm (802.11g) |
| Switch-mode power supply |
Auto-range 100-240 V, (50/60 Hz) |
| Power consumption |
30 W |
| Standard operating temperature range |
5°C – 40°C (41°F – 104°F) |
| Dimensions |
333 x 149 x 95 mm (13.1 x 5.9 x 3.7 in) |
| Weight |
2.4 kg (5.3 lb) |
