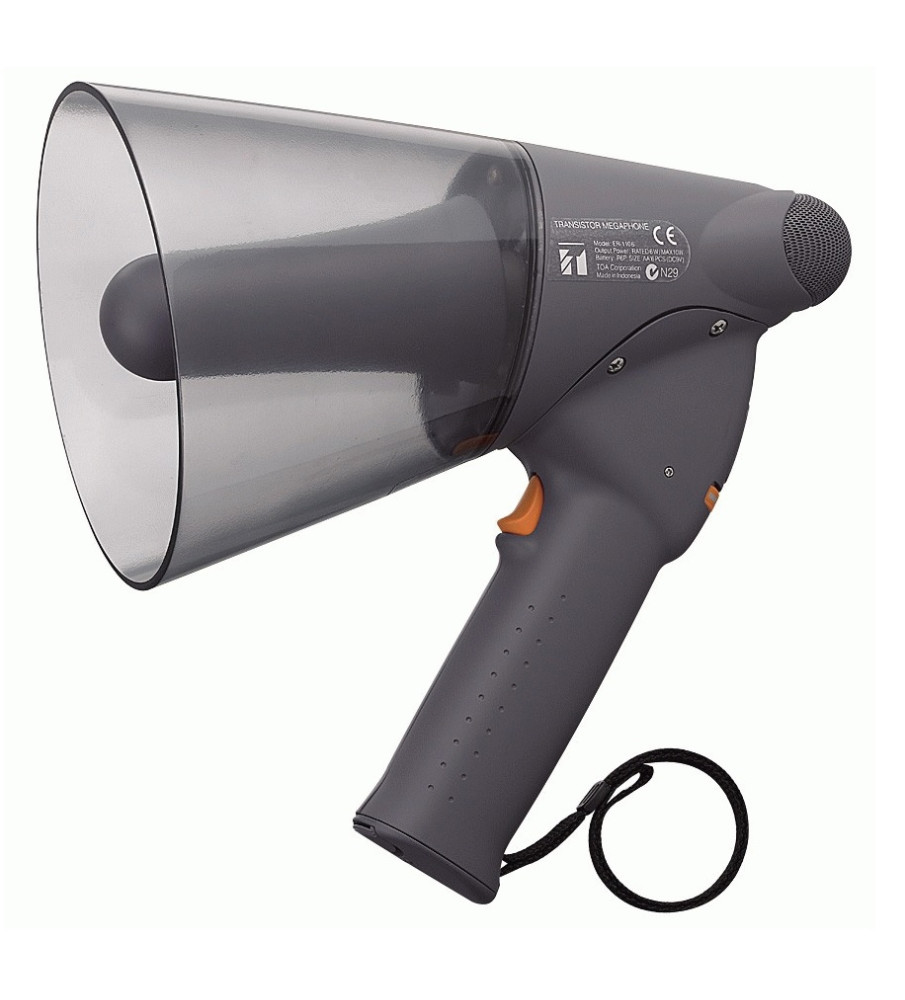

TOA ER-1206
6W Compact Megaphone
The ER-1206 is a compact splash-proof megaphone rated at 6 W output and features IPX5 water-jet-resistant designs. It operates with 6 R6P batteries, or 4 R6P batteries when the battery spacer (accessory) is used.
Features:
Use optional wall bracket SP1100 for wall mounting.
|
Specification |
|
|
Power Source |
R6P (AA) X 6 (9 V DC) or R6P (AA) x 4 (6 V DC) |
|
Rated Output |
6 W |
|
Maximum Output |
10 W |
|
Battery Life |
When using 6 R6P batteries: Approx. 8 hours. When using 4 R6P batteries: Approx. 5 hours. |
|
Audible Range |
Approx. 250 m |
|
Frequency Response |
450 – 6,000 Hz (SPL -20dB0 |
|
Magnetic Circuit |
Neodymium magnet, inner magnet type |
|
Diaphragm |
Polyimide film (voice coil, bobbin) |
|
Anti-bacteria Treatment |
Mouthpiece and Handle |
|
Water Protection |
IPX5 |
|
Operating Temperature |
-10°C to +40°C |
|
Finish |
Horn: ASA resin, clear dark grey. Other: ASA resin, dark grey. Strap: Nylon, black |
|
Dimensions |
154 (W) X 266 (H) X 250 (D) mm |
|
Weight |
660g (without batteries) |
|
Accessory |
Battery spacer….1 |
|
Option |
Wall mounting bracket for megaphone: SP-1100 |
