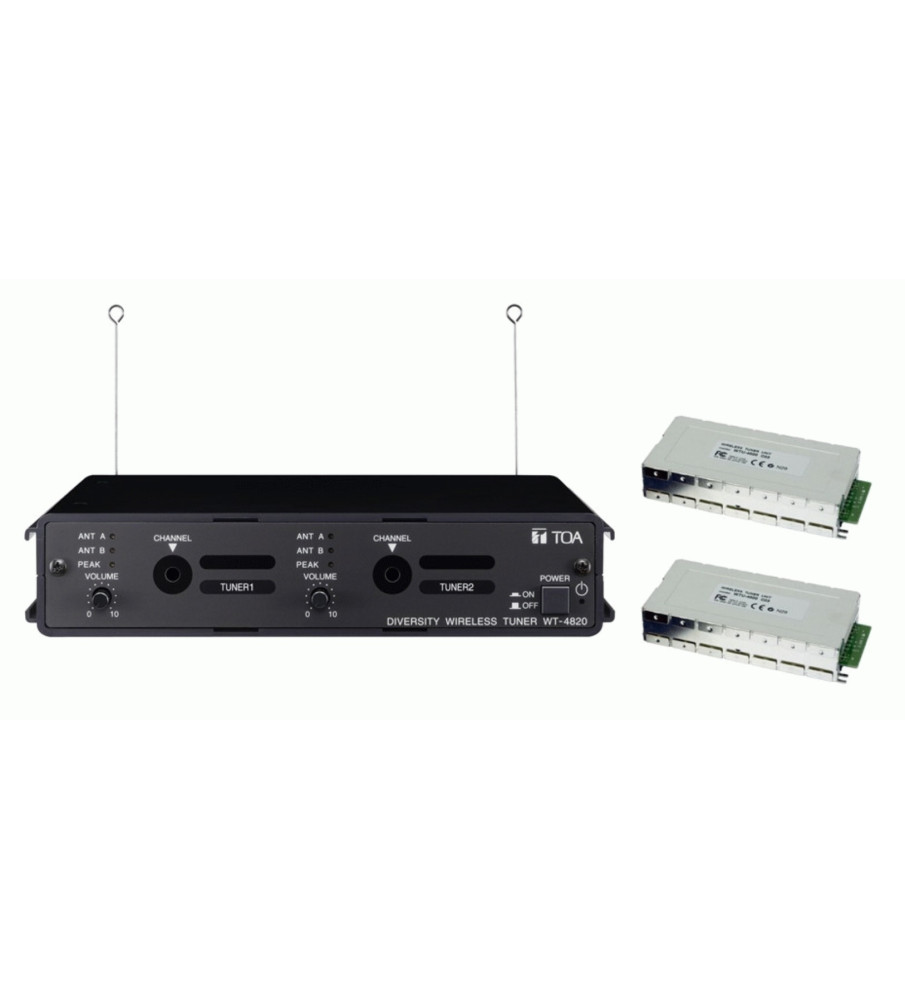

TOA WT-4820CH2 FO1
Wireless Receiver
THE TOA WT-4820 MODULAR DUAL CHANNEL WIRELESS RECEIVER combines cutting-edge wireless technology with user benefits such as fast setup, simple operation, and reliable performance. The WT-4820 accepts up to two WTU-4800 Diversity Tuner Modules available in 2 different frequency bands (H01 & M1) with sixteen user-selectable channels in the UHF band (506 ~ 608 MHz) with simultaneous operation of up to sixteen channels. Features include individual channel outputs, mix output and antenna cascade for sharing antennas between two units. A convenient Mix-in jack allows the connection of the audio output of a second WT-4820 or other source. Handheld transmitters include the WM-5270 Dynamic handheld for vocals, WM-5265 Dynamic Rechargeable* handheld for vocals and the WM-5225 Condenser Rechargeable* for speech. Bodypack transmitters include the WM-5325 Rechargeable* UHF Body-pack Transmitter with a choice of Omni-directional, Uni-directional and headset style varieties of microphones. All transmitters offer ten hours of operation from one AA battery with low battery indication. The bodypack transmitter also has a recessed on/off switch to prevent accidental shut-off and a rotatable bodypack clip for versatile mounting. *Choose one of three optional BC series charging stations which can charge either the handheld or bodypack style transmitters with included handheld adaptor.
Manufacturer’s Part Number: 487506
All TOA wireless systems are FCC and UL listed and are backed by a five-year warranty.
|
Power Source |
AC mains (supplied AC adapter must be used) |
|
Power Consumption |
250 mA (12 V DC, when operating with two tuner modules) |
|
Receiving Frequency |
506 ~ 608 MHz (*3), UHF |
|
Mixing Input |
-20 dB(*1), 10 kΩ, unbalanced, phone jack |
|
Audio Output |
Mixing/Channel 1 (selectable): |
|
Antenna Input |
75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max) |
|
Antenna Output |
75 Ω, BNC (Gain 0 dB) |
|
Indicator |
ANT A/B, Audio (peak), Power |
|
Signal to Noise Ratio |
102 dB or more (A-weight, balanced output) |
|
Harmonic Distortion |
1 % or less |
|
Frequency Response |
50 Hz - 18 kHz, ±3 dB |
|
Operating Temperature |
-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
|
Operating Humidity |
30 % to 85 %RH |
|
Finish |
Resin, black |
|
Dimensions |
210 (W) × 44 (H) × 181 (D) mm (8.27" × 1.73" × 7.13") |
|
Weight |
770 g (1.71 lb) (without tuner module) |
|
Accessory |
AC adapter (*2) …1 AD-4800US P/N - 100072907A, Whip antenna …2, Rubber foot …4 |
|
Option |
Mounting bracket kit: MB-WT3 (for rack mounting one WT-4820 unit) |
