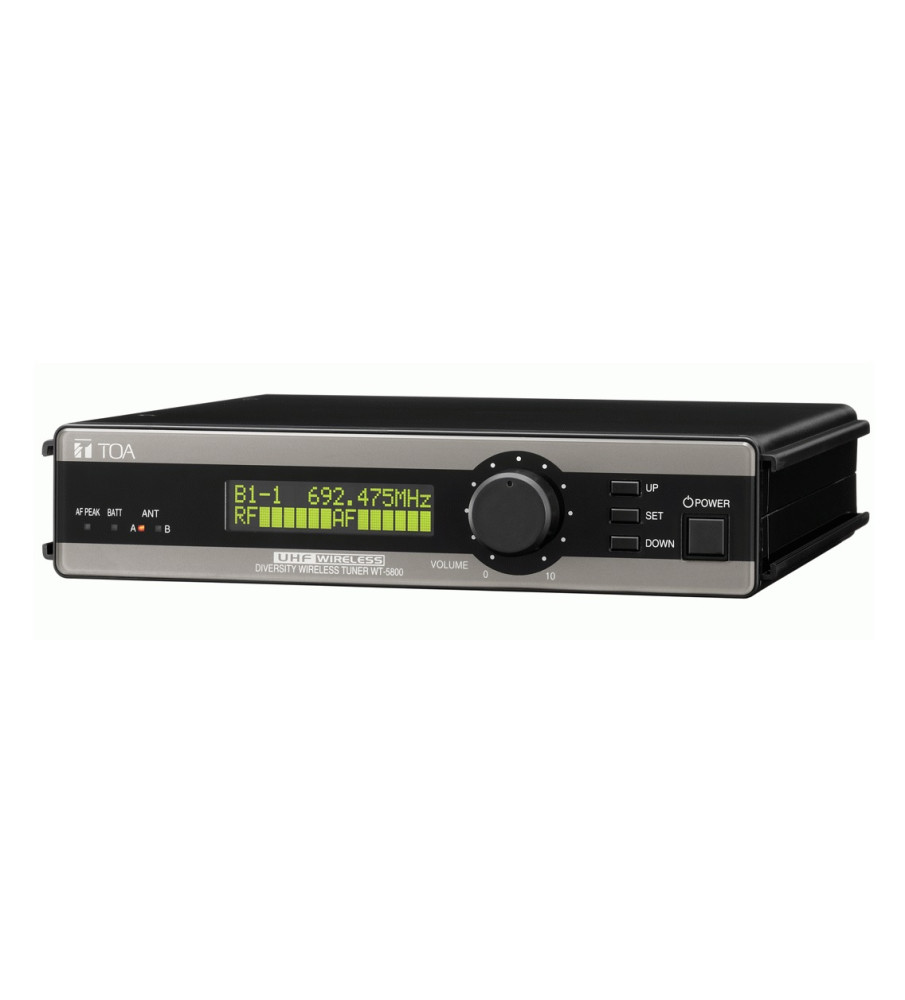

Wireless Tuner WT-5800
The wireless tuner WT-5800 is a PLL-synthesizer controlled double super-heterodyne true diversity tuner to be used in UHF wireless systems. It employs a compander noise reduction circuit to minimize the influence of the ambient RF noise.
*When ordering, WT receivers and WM transmitters (microphones) must match in frequency group for proper operation. Available frequency groups are H01 (suffix H01 US) or M1 (suffix AM RM1 D00)
Manufacturer’s Part Number: 487512
|
Power Source |
AC mains (supplied AC adapter must be used) |
|
Power Consumption |
250 mA (12 V DC) |
|
Receiving Frequency |
506 ~ 608 MHz (*2), UHF |
|
Channel Selectable |
64 selectable frequencies |
|
Receiving System |
Double super-heterodyne |
|
Diversity System |
Space diversity (true diversity) |
|
Mixing Output |
MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1) (LINE), 600 Ω |
|
Mixing Input |
-20 dB (*1), 10 kΩ, unbalanced, phone jack |
|
Antenna Input |
75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max) |
|
Antenna Output |
75 Ω, BNC (Gain 0 dB) |
|
Receiving Sensitivity |
90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) |
|
Squelch Sensitivity |
16 - 40 dBμV variable |
|
Squelch System |
Using together of noise SQ, carrier SQ and tone SQ |
|
Tone Frequency |
32.768 kHz |
|
Indicator |
Audio (6 step), RF (6 step), ANT A/B, Audio (peak), Battery alarm |
|
Channel Check |
Usable frequencies scanning |
|
Signal to Noise Ratio |
110 dB or more (A-weight, unbalanced output) |
|
Harmonic Distortion |
1 % or less (typical) |
|
Frequency Response |
100 Hz - 15 kHz, ±3 dB |
|
Operating Temperature |
-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
|
Operating Humidity |
30 % to 85 %RH |
|
Finish |
Resin, black |
|
Dimensions |
210 (W) × 44 (H) × 205.1 (D) mm (8.27" × 1.73" × 8.07") |
|
Weight |
700 g (1.54 lb) |
|
Accessory |
AC adapter (*3) …1, Whip antenna…2, Rubber foot…4 |
|
Option |
Mounting bracket kit: MB-WT3 (for rack mounting one WT-5800 unit) |
