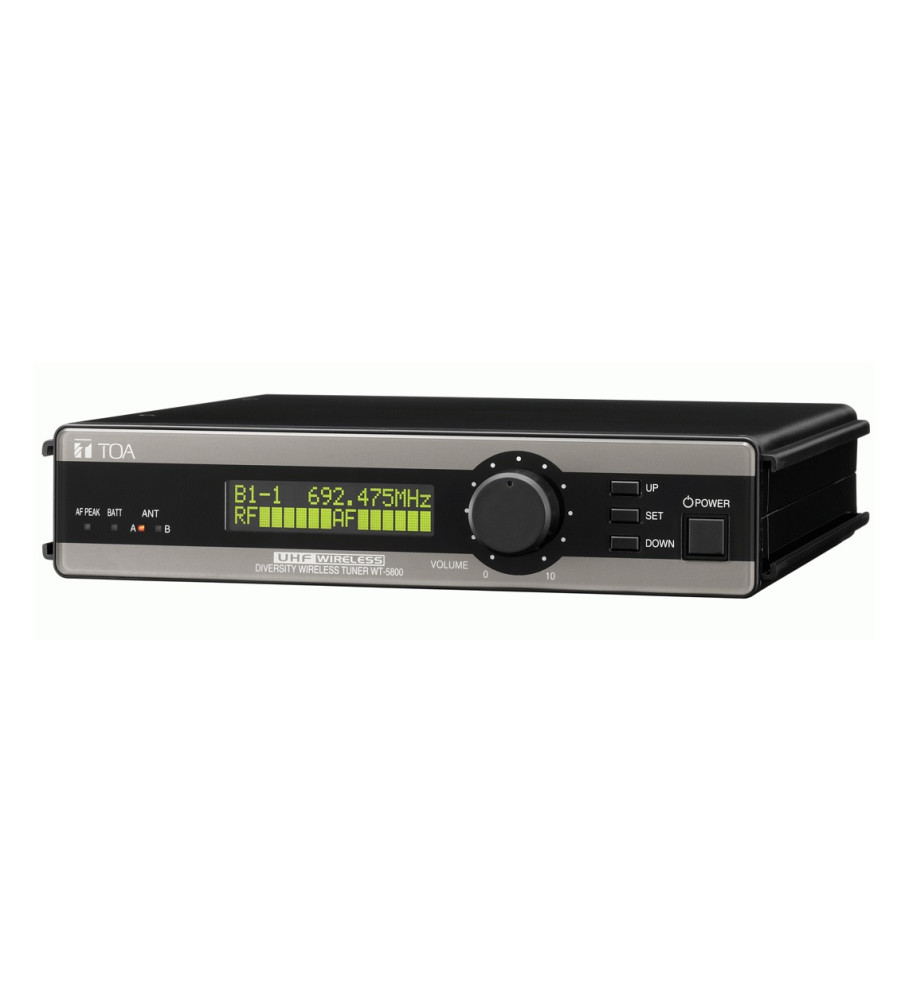

TOA WT-5810 H01AS H01 ANT Diversity Receiver

TOA WT-5810 H01AS H01 ANT Diversity Receiver

$505.00 Save $64.00
$569.00
Tax included

TOA WT-5810 HO1AS HO1 ANT
 Wireless Microphone Receiver

WT-5810 Wireless Tuner

The WT-5810 Wireless Tuner is designed for use on the UHF band, and suitable for vocal or speech reinforcement applications.
It features a compounder circuit that minimizes the influence of ambient noise. 16 different operating frequencies ranging from 576 to 865 MHz. Optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient temperature change.
Compact size and high reliability.

  • Phase Locked Loop (PLL) synthesis operation
  • 16 selectable channel frequencies
  • TOA space diversity technology
  • Double super-heterodyne receiving system
  • Auto mixing input function
  • Squelch function (carrier, noise, tone)
  • Usable frequencies scanning and vacant channel search function.
  • Compact portable design
  • Compander circuitry for minimizing ambient noise.
  • Rod antenna × 2
  • Balanced output (XLR connector) and phone jack output

Low-battery indicator (wireless microphone's battery voltage becomes low)

WT-5810 Wireless Tuner

Power Consumption

130mA (12V DC)

Receiving Frequency

576–865 MHz*, UHF

Channel Selectable

16 CH

Diversity System

Space divercity

Mixing Output

MIC: –60dB*2, 600Ω, balanced, XLR-3-31 type connector
LINE: –20dB*2, 600Ω, unbalanced, phone jack

Mixing Input

–20dB*2, 10 kΩ, unbalanced, phone jack

Antenna

Rod antenna

Receiving Sensitivity

Over 90dB, S/N ratio (20dBμV input, 40kHz deviation)

Squelch Sensitivity

18 – 40dBμV variable

Squelch System

Using together of noise SQ, carrier SQ and tone SQ

Indicator

ANT A/B, Audio (peak), battery alarm

Channel Check

Usable frequencies scanning

S/N Ratio

Over 104dB (A-weight, unbalanced output)

Harmonic Distortion

Under 1% (typical)

Frequency Response

100 – 15,000kHz, ±3 dB

Dimensions

206(W) × 40.6(H) × 152.7(D) mm (8.11" × 1.60" × 6.01")

Weight

590 g (1.30 lb)
: WT-5810 H01AS H01 ANT
