Manufacturer's Part Number: SKU 450687

·        Converts MIDI signals to analog control voltages for modular synthesizers.

·        High-resolution 16-Bit Texas Instruments DAC for high resolution and pitch accuracy

·        Enables modular synthesizers to be controlled by a MIDI keyboard, sequencer, or DAW.

Features:

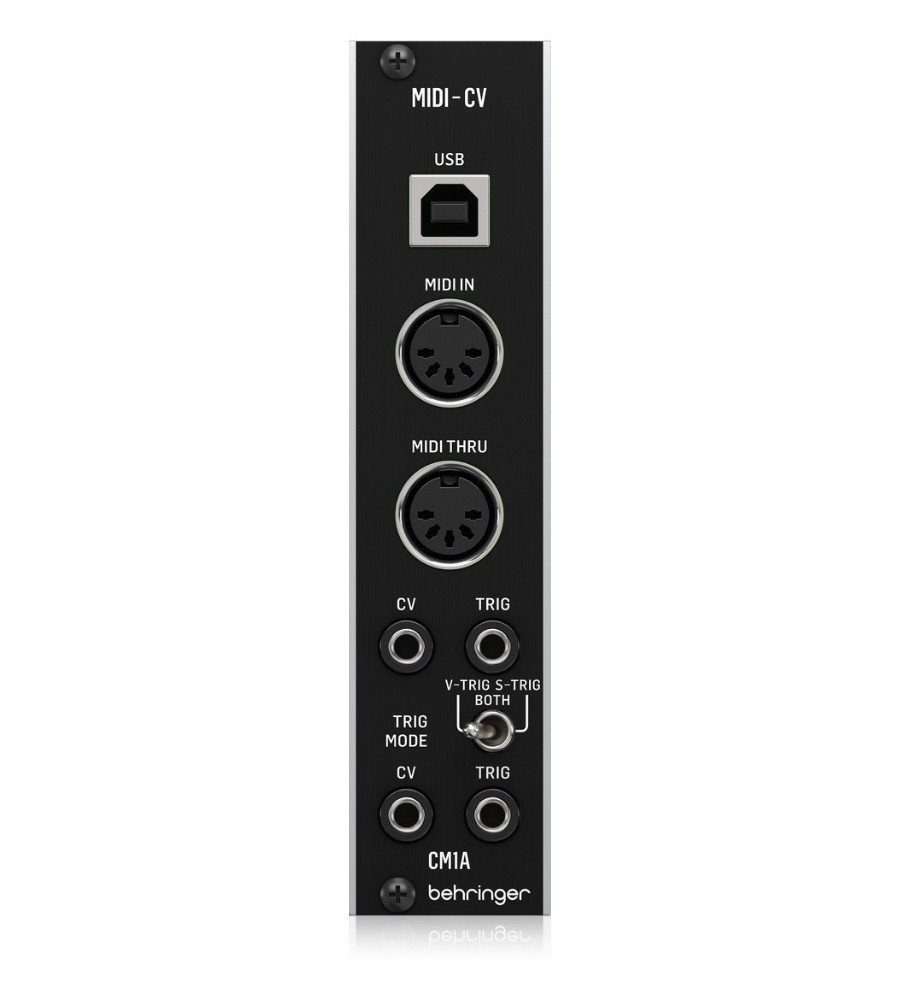

High-Resolution 16-Bit MIDI to CV Converter Module for Eurorack

A high-resolution 16-Bit MIDI to CV Converter that allows you to control any modular synth in your setup with a MIDI keyboard, sequencer, or DAW to open up an infinite number of ways to make some amazing tunes and a whole realm of sonic possibilities. Plus, its 16-Bit Texas Instruments DAC ensures the highest resolution sound quality and pitch accuracy.

  • Converts MIDI signals to analog control voltages for modular synthesizers.
  • High-resolution 16-Bit Texas Instruments DAC for high resolution and pitch accuracy
  • Enables modular synthesizers to be controlled by a MIDI keyboard, sequencer, or DAW.
  • Dual trigger outputs can be used to control envelope generators.
  • Select between V-trigger, S-trigger, or both for maximum flexibility.
  • Eurorack specs: 6 HP, 70 mA +12 V, 10 mA -12 V

·        Height - 5.9cm

·        Width - 9.6cm

·        Length - 17.9cm

·        Weight - 0.09kg



Outputs

CV

Type

2 x 3.5 mm TS jack, DC coupled

Impedance

100 Ω

Max output level

-6.3 V to +10 V

CV range, System 100, 2500 series mode

-1 V to +9 V, 1 V/octave

CV range, System 15, 35, 55 modes

-5.3 V to +4.7 V, 1 V/octave

CV modes

Monophonic, duophonic

Trig

Type

2 x 3.5 mm TS jack, DC coupled

Impedance

25 Ω

Max output level

+5 V when in V-Trig mode,
S-Trig = pull down to 0 V

Trig modes

V-Trig, S-Trig, both: upper = S-Trig, lower = V-Trig

MIDI

Type

  • 2 x 5-pin DIN
  • MIDI IN and MIDI THRU
  • MIDI Channel (1 to 16) set via SynthTribe tool

USB

Type

USB 2.0, Type B

Mode selects (rear panel)

Mode 1, underside LEDs = red/red

System 15, 35, 55 CV range, monophonic

Mode 2, underside LEDs = green/red

System 100, 2500 series CV range, monophonic

Mode 3, underside LEDs = red/green

System 15, 35, 55 CV range, duophonic

Mode 4, underside LEDs = green/green

System 100, 2500 series CV range, duophonic

Power

Power supply

Eurorack

Current draw

0 mA (+12 V),
10 mA (-12 V)

Physical

Dimensions

30 x 129x 520 mm
(1.18 x 5.08 x 20.47")

Rack units

6 HP

Weight

0.09 kg

: CM1A
