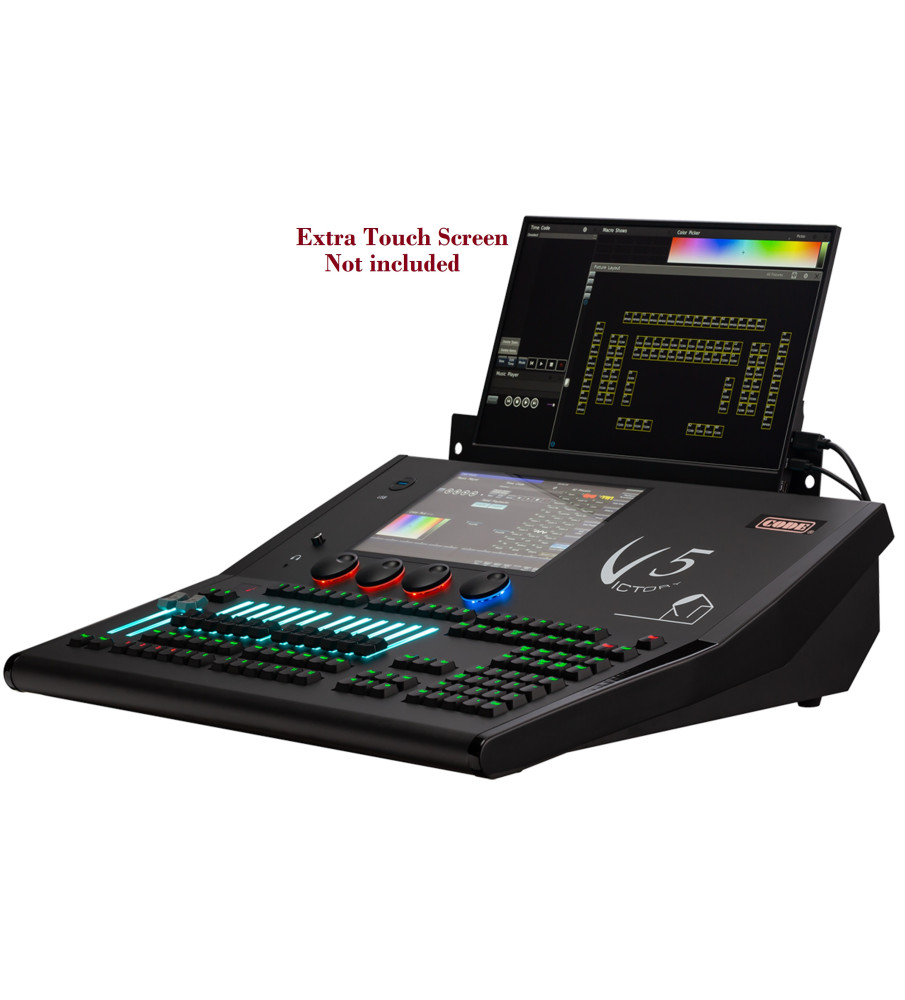

CODE Victory 5
Lighting Controller
1024 DMX channel Outputs
and additional 1024 DMX channel via Art Net
Click HERE to Download the Manual
Click HERE to View the Manufacturer’s Website
Click HERE to Upgrade Firmware
Click HERE to Upgrade Fixture Library
Click HERE to Download App
Features:
• Provides 2 optically isolated outputs. A maximum of 2048 channels can be offered through the Art-Net function.
• Built-in 10-inch capacitive LCD touch screen.• 12 playback faders and 12 playback keys run with 80 pages.
• Supports 1 x additional touch screen.
• 4 backlit optical encoders for data settings.
• The key backlit offers three color options and adjustable brightness.
• Playback faders with backlit that can set 3 different usage states to different colors.
• Individual keys for the flash and pause functions for playbacks.
• Provide midi In, Out, and Thru interfaces to connect and work with other devices. Accept midi time code signal.
• Built-in WiFi for connecting applications on mobile or tablet devices.
• Provide one USB 3.0 and two USB 2.0 interfaces.
• Provide one HDMI interface.
• Offer a RCA audio interface, one audio optical interface, and a headphone interface.
• A working lamp interface.
• Power supply: AC100-240V, 50-60Hz.
• Size: 570mm × 445mm × 152mm.
• Net weight: 10Kg approx.
