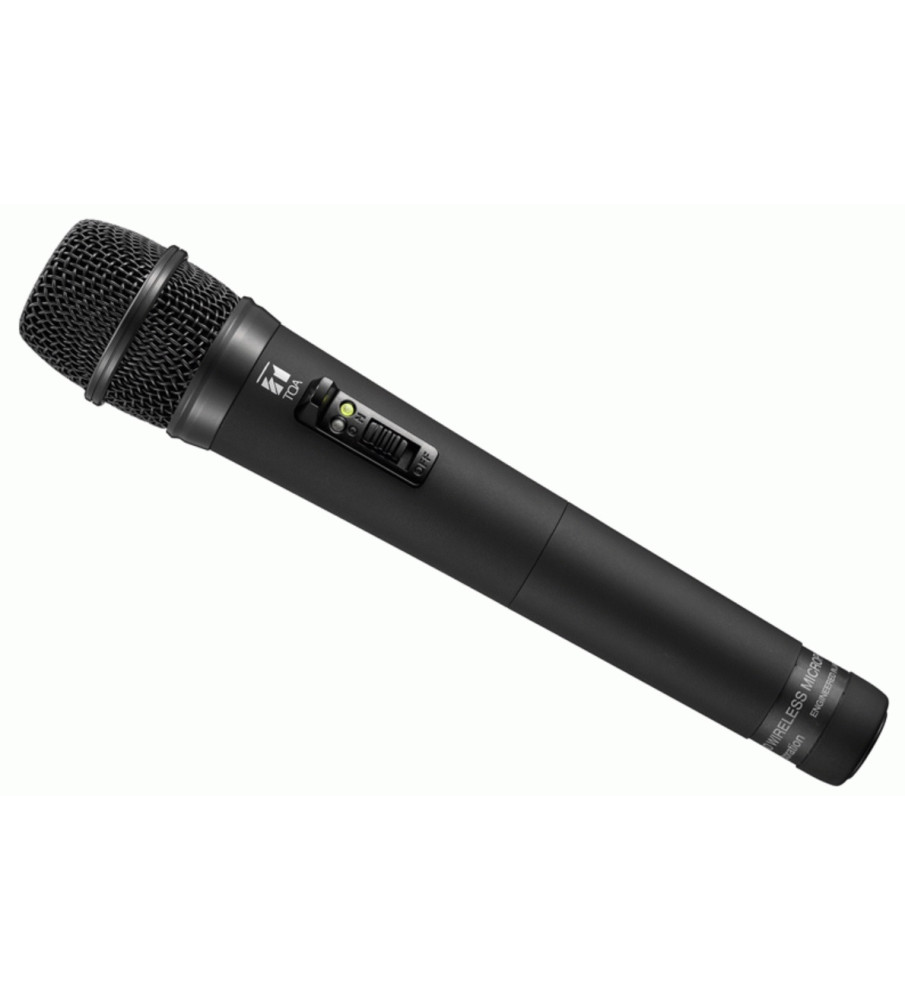

TOA WM-5225 H01
Wireless Microphone
Wireless microphone
The WM-5225 Wireless Microphone employs an electret condenser microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.
Specifications:
|
WM-5225 H01
|
|
|
|
|
Power source
|
Battery 1 AA size alkaline battery, 1.5 V or WB-2000-2 |
Battery 1 AA size alkaline battery, 1.5 V or WB-2000-2 |
Battery 1 AA size alkaline battery, 1.5 V |
|
Battery life
|
10 h |
10 h |
10 h |
|
Microphone type.
|
Electret condenser |
Dynamic |
Dynamic |
|
Directivity
|
Cardioid |
Hypercardioid |
Cardioid |
|
Frequency range
|
578 – 606 MHz |
578 – 606 MHz |
578 – 606 MHz |
|
Selectable frequencies
|
64 |
64 |
64 |
|
Simultaneous channels
|
16 |
16 |
16 |
|
AF response
|
100 Hz - 15 kHz |
100 Hz - 15 kHz |
80 Hz - 15 kHz |
|
RF output power
|
10 mW |
10 mW |
10 mW |
|
Max. input level (value)
|
126 dBSPL |
132 dBSPL |
142 dBSPL |
|
Max. input level
|
126 dBSPL |
132 dBSPL |
142 dBSPL |
|
Operating temperature
|
-10°C ... +50°C |
-10°C ... +50°C |
-10°C ... +50°C |
|
Operating humidity.
|
30% - 85% |
30% - 85% |
30% - 85% |
|
Dimensions
|
43.6 x 231.5 mm (Ø x D) |
50 x 229 mm (Ø x D) |
48 x 244 mm (Ø x D) |
|
Finish
|
Resin, black |
Resin, black |
Metal, dark grey |
|
Accessory (included)
|
Microphone holder (with stand adapter) x 1, storage case x1, screwdriver (for setting) x1 |
Microphone holder (with stand adapter) x 1, storage case x1, screwdriver (for setting) x1 |
Microphone holder (with stand adapter) x1, storage case x 1, screwdriver for setting (housed in the body) x1, rolling stopper x1 |
