TOA WS-5225 HO1AS
Handheld Wireless Microphone

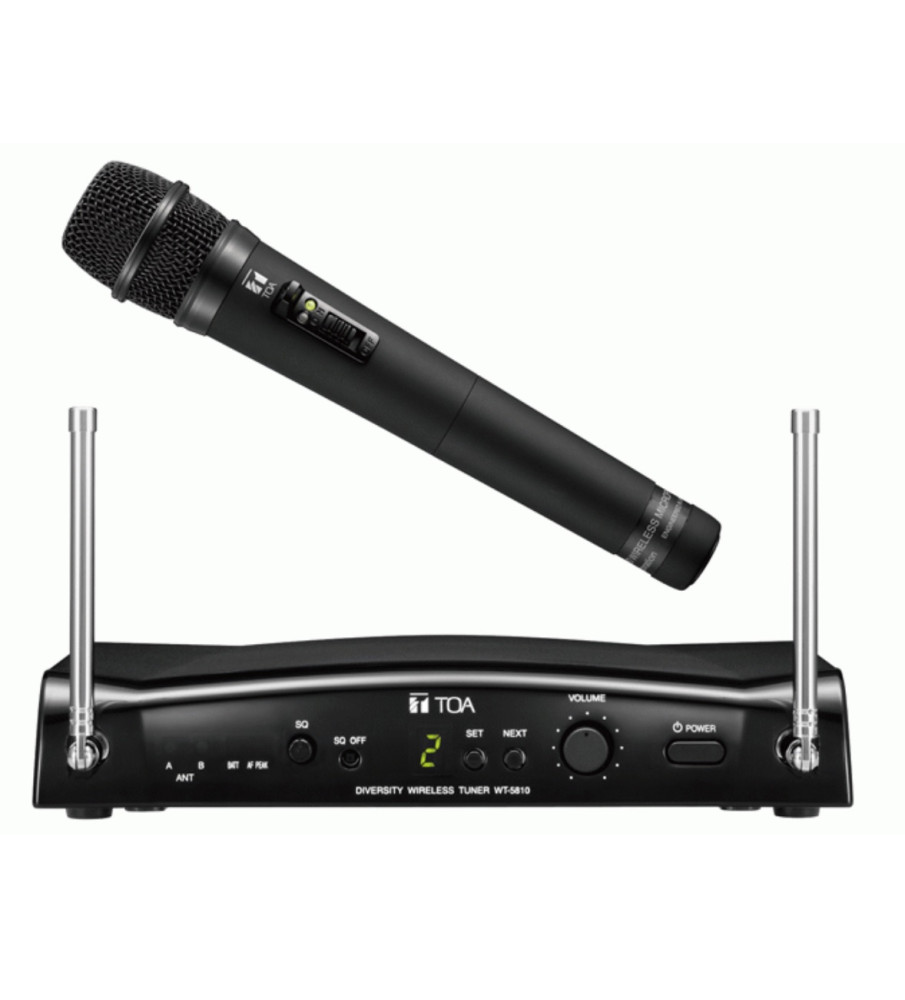

The WS-5225 includes a handheld wireless microphone WM-5225 and a diversity wireless tuner WT-5810. The WM-5225 wireless microphone employs an electret condenser microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.
Wireless Microphone.
Features:
Tuner
System Components
Handheld wireless microphone WM-5225 x 1
Diversity wireless tuner WT-5810 x 1
Frequency Range
576 - 865 MHz*, UHF
Tone Frequency
32.768 kHz
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F) (except battery)
Included Accessories
AC adapter x 1, Screwdriver x 1, Microphone holder W3/8" (stand adapter W5/8" -> W3/8") x 1, Storage case x 1
WIRELESS MICROPHONE
Microphone Element
Electret condenser microphone unit: Unidirectional
Modulation
Frequency modulation
Frequency Range
576 - 937.5 MHz, UHF
Channel Selection
64 channels (the number of channels may differ from country to country)
RF Carrier Power
Less than 50 mW (Factory preset 10 mW ERP)
Tone Frequency
32.768 kHz
Modulation Type
PLL synthesized.
Maximum Input Level
126 dB SPL
Maximum Deviation
±40 kHz
Audio Frequency Response
100 Hz - 15 kHz
Dynamic Range
95 dB or more (with WT-5800)
Battery
WB-2000 rechargeable battery (option) or AA alkaline dry cell battery
Battery Life
Approx. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)
Indicator
Power/Battery lamps
Antenna
Built-in type
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F) (except battery)
Operating Humidity
30 % to 85 %RH (no condensation)
Finish
Resin, coating.
Dimensions
Ø43.6 x 231.5 mm (Ø1.72" x 9.11")
Weight
180 g (0.4 lb) (with battery)
Included Accessories
Microphone holder W3/8 (with stand adapter) x 1
Screwdriver x 1, Storage case x 1.
Optional Accessories
Battery charger: BC-5000-2, BC-5000-6, BC-5000-12
Ni-MH battery: WB-2000-2 (containing 2 pieces)
WIRELESS TUNER
(*1) 0 dB = 1 V
Power Source
AC mains (supplied AC adapter must be used)
Power Consumption
130 mA (12 V DC)
Receiving Frequency
576 - 865 MHz, UHF
Channel Selection
16 channels
Receiving System
Double super-heterodyne
Diversity System
Space diversity
Mixing Output
MIC: -60 dB (*1), 600 Ω, balanced, XLR-3-32 type connector
LINE: -20 dB (*1), 600 Ω, unbalanced, phone jack
Mixing Input
-20 dB (*1), 10 kΩ, unbalanced, phone jack.
Antenna
Whip antenna.
Receiving Sensitivity
90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
Squelch Sensitivity
16 - 40 dBμV variable
Squelch System
Using together of noise SQ, carrier SQ and tone SQ
Tone Frequency
32.768 kHz
Indicator
ANT A/B, Audio (peak), Battery alarm, Channel number
Channel Check
Usable frequencies scanning
Signal to Noise Ratio
104 dB or more (A-weight, unbalanced output)
Frequency Response
100 Hz - 15 kHz, ±3 dB
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F)
Operating Humidity
30 % to 85 %RH
Finish
Resin, black.
Dimensions
206 (W) x 40.6 (H) x 152.7 (D) mm (8.11" x 1.6" x 6.01") (excluding antenna)
Weight
590 g (1.3 lb)
Included Accessories
AC adapter x 1
