TOA WS-5265 HO1AS
Handheld Wireless Microphone

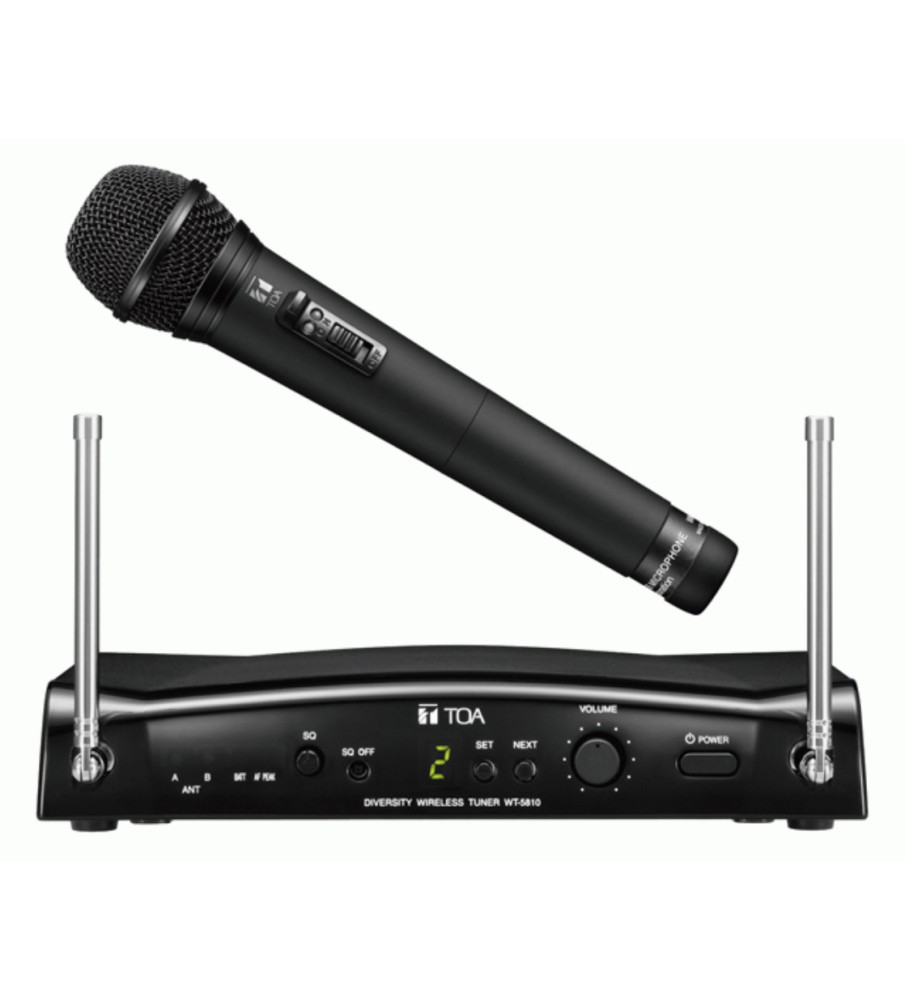

The WS-5265 kit includes the WM-5265 handheld wireless microphone, and a WT-5810 antenna diversity wireless tuner. The WM-5265 wireless microphone employs a dynamic microphone capsule and is suitable for any application.; Thanks to the PLL-synthesizer system, 16 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.
|
Power Source |
AC mains (supplied AC adapter must be used) |
|
Power Consumption |
130 mA (12 V DC) |
|
Receiving Frequency |
578 – 606 MHz or 636-666MHz |
|
Channel Selectable |
16 channels |
|
Receiving System |
Double super-heterodyne |
|
Diversity System |
Space diversity |
|
Mixing Output |
MIC: -60 dB (*1), 600 Ω, balanced, XLR-3-32 type connector |
|
Mixing Input |
-20 dB (*1), 10 kΩ, unbalanced, phone jack |
|
Antenna |
Whip antenna |
|
Receiving Sensitivity |
90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) |
|
Squelch Sensitivity |
16 – 40 dBμV variable |
|
Squelch System |
Using together of noise SQ, carrier SQ and tone SQ |
|
Tone Frequency |
32.768 kHz |
|
Indicator |
ANT A/B, Audio (peak), Battery alarm, Channel number |
|
Channel Check |
Usable frequencies scanning |
|
Signal to Noise Ratio |
104 dB or more (A-weight, unbalanced output) |
|
Harmonic Distortion |
1 % or less (typical) |
|
Frequency Response |
100 Hz – 15 kHz, ±3 dB |
|
Operating Temperature |
-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
|
Operating Humidity |
30 % to 85 %RH |
|
Finish |
Resin, black |
|
Dimensions |
206 (W) × 40.6 (H) × 152.7 (D) mm (8.11″ × 1.6″ × 6.01″) (excluding antenna) |
|
Weight |
590 g (1.3 lb) |
|
Accessory |
AC adapter (*3) …1 |
