TOA WS-5325M HO1AS
Handheld Wireless Microphone

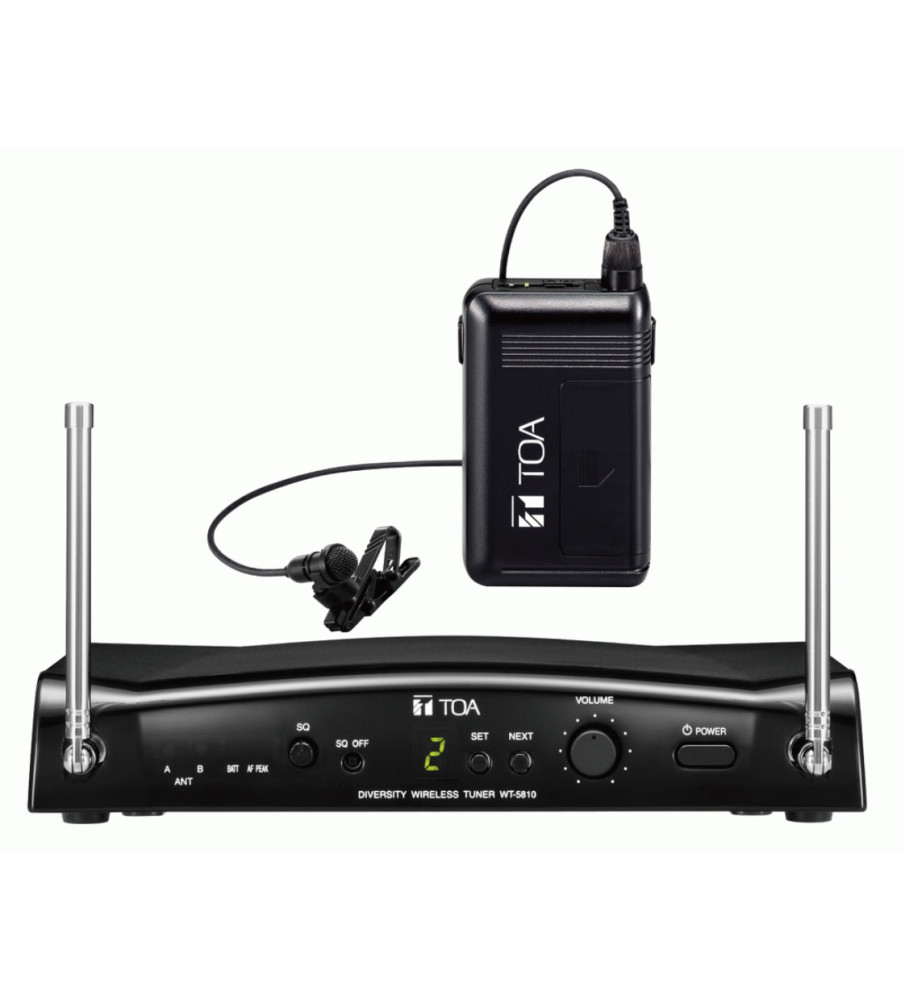

The WS-5325M wireless microphone system set includes a wireless transmitter WM-5325, a lavalier microphone YP-M5310, and a diversity wireless tuner WT-5810. The WM-5325 wireless transmitter has been manufactured for use with a UHF system. With the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The YP-M5310 employs an electret condenser microphone element and has been designed for use in speech reinforcement applications. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.
Manufacturer’s Part Number: 487500
|
Product Composition |
Wireless transmitter WM-5325 …1, Lavalier microphone YP-M5310 …1, Diversity wireless tuner WT-5810 …1 |
|
Frequency Range |
576 - 865 MHz (*1), UHF |
|
Tone Frequency |
32.768 kHz |
|
Operating Temperature |
-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
|
Accessory |
AC adapter (*2) …1, Screwdriver …1, Strage case …1, Neck strap …1 |
(*3) 0 dB = 1 V
Wireless Transmitter
|
Modulation |
Frequency modulation |
|
Channel Selectable |
64 channels (the number of channels may differ from country to country) |
|
RF Carrier Power |
Less than 50 mW (Factory preset 10 mW ERP) |
|
Oscillator |
PLL synthesized |
|
Maximum Input Level |
-14 dB to -29 dB (*3) (Audio level control: Min. to Max.) |
|
Battery |
WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or AA alkaline dry cell battery |
|
Battery Life |
Approx. 13 h (when the WB-2000 rechargeable battery is used) |
|
Indicator |
Power/Battery lamps |
|
Antenna |
Built-in type |
|
Finish |
Resin, coating |
|
Dimensions |
62 (W) × 102.5 (H) × 23 (D) mm (2.44 × 4.04" × 0.91") |
|
Weight |
90 g (0.2 lb) (with battery) |
Lavalier Microphone
|
Microphone Element |
Electret condenser type: Omnidirectional |
|
Sensitivity |
-64 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz) |
|
Cord Length |
1.3 m (4.27 ft) |
|
Finish |
Dark black |
|
Weight |
20 g (0.71 oz) (cable included) |
(*3) 0 dB = 1 V
Diversity Wireless Tuner
|
Power Source |
AC mains (supplied AC adapter must be used) |
|
Power Consumption |
130 mA (12 V DC) |
|
Channel Selectable |
16 channels |
|
Receiving System |
Double super-heterodyne |
|
Diversity System |
Space diversity |
|
Mixing Output |
MIC: -60 dB (*3), 600 Ω, balanced, XLR-3-32 type connector |
|
Mixing Input |
-20 dB (*3), 10 kΩ, unbalanced, phone jack |
|
Antenna |
Whip antenna |
|
Receiving Sensitivity |
90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) |
|
Squelch Sensitivity |
16 - 40 dBμV variable |
|
Squelch System |
Using together of noise SQ, carrier SQ and tone SQ |
|
Indicator |
ANT A/B, Audio (peak), Battery alarm, Channel number |
|
Channel Check |
Usable frequencies scanning |
|
Signal to Noise Ratio |
104 dB or more (A-weight, unbalanced output) |
|
Harmonic Distortion |
1 % or less (typical) |
|
Frequency Response |
100 Hz - 15 kHz, ±3 dB |
|
Finish |
Resin, black |
|
Dimensions |
206 (W) × 40.6 (H) × 152.7 (D) mm (8.11 × 1.6" × 6.01") (excluding antenna) |
|
Weight |
590 g (1.3 lb) |
