ORDER CODE
mkh 8050

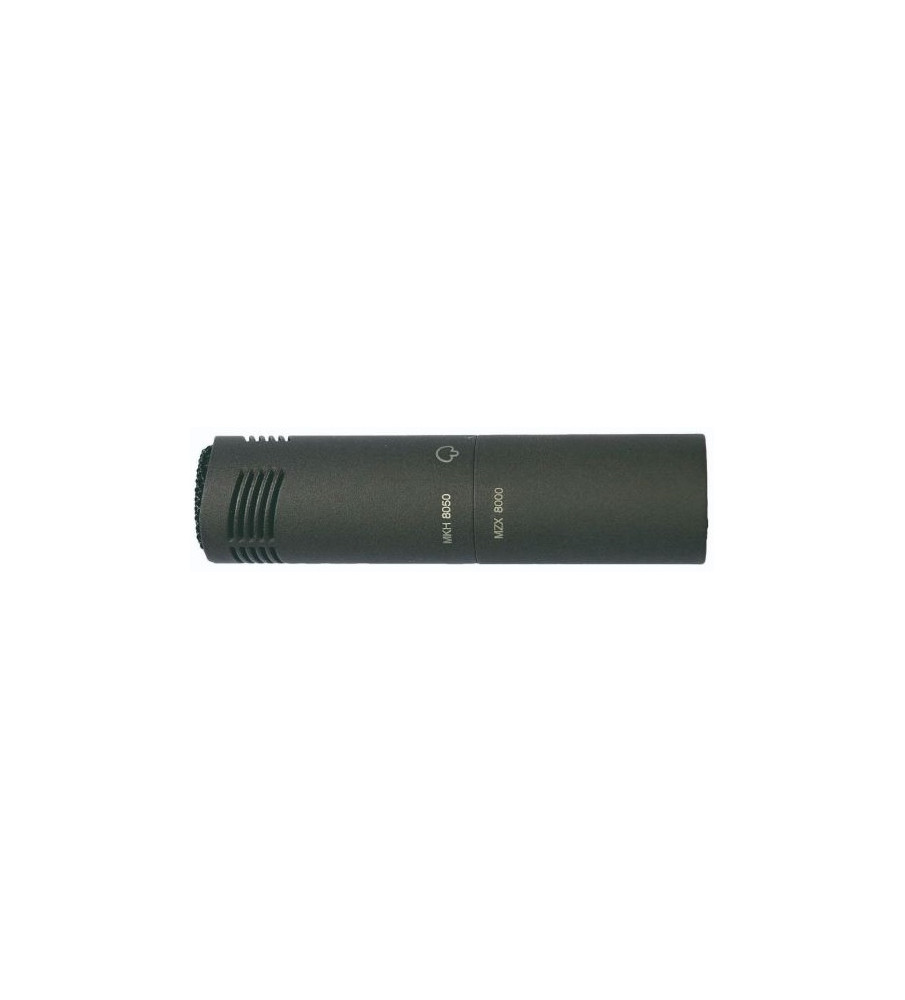

The Sennheiser MKH8050 - Supercardioid Condenser Microphone is a professional low-profile condenser for capturing vocals and instruments in recording and sound reinforcement applications. The modular design consists of the MKHC-8050 supercardioid capsule and the MZX-8000 XLR module / output stage.
The supercardioid capsule is most effective in minimizing feedback and off-axis audio. The symmetrical transducer with two back-plates yields extremely low distortion. The wide frequency response provides exceptional detail and transparency. With its pristine audio quality and compact design the MKH-8050 is ideal for soloist capturing.
ITEM NUMBER: 506291
Super-cardioid pick-up pattern
Modular design
Wide frequency response 30 to 50.000 Hz
Symmetrical transducer with 2 backplates providing extremly low distortion
Extremely low inherent self-noise
Accurate directional pattern
Non reflective Nextel coating
Provides optimum separation of instruments
Transducer principle (Microphone): RF condenser microphone
Pick-up pattern: super cardioid
Frequency response: 30 Hz - 50 kHz
Sensitivity in free field, no load (1kHz): 20 mV/Pa (- 34 dBV/Pa)
Nominal impedance: 25 Ohm
Min. terminating impedance: 1000 Ohm
Maximum sound pressure level (passive): 142 dB SPL
Equivalent noise level: 13 dB(A)
Equivalent noise level weighted as per CCIR 468-3: 22 dB
Phantom powering: 48 V +/- 4V
Current consumption: 3,3 mA
Audio output: XLR-3M balanced, transformerless, floating
Dimensions: D=19 mm, L=74 mm (41 mm excluding XLR module)
Weight: 55g (25 g excluding XLR module)
ORDER CODE
mkh 8050
