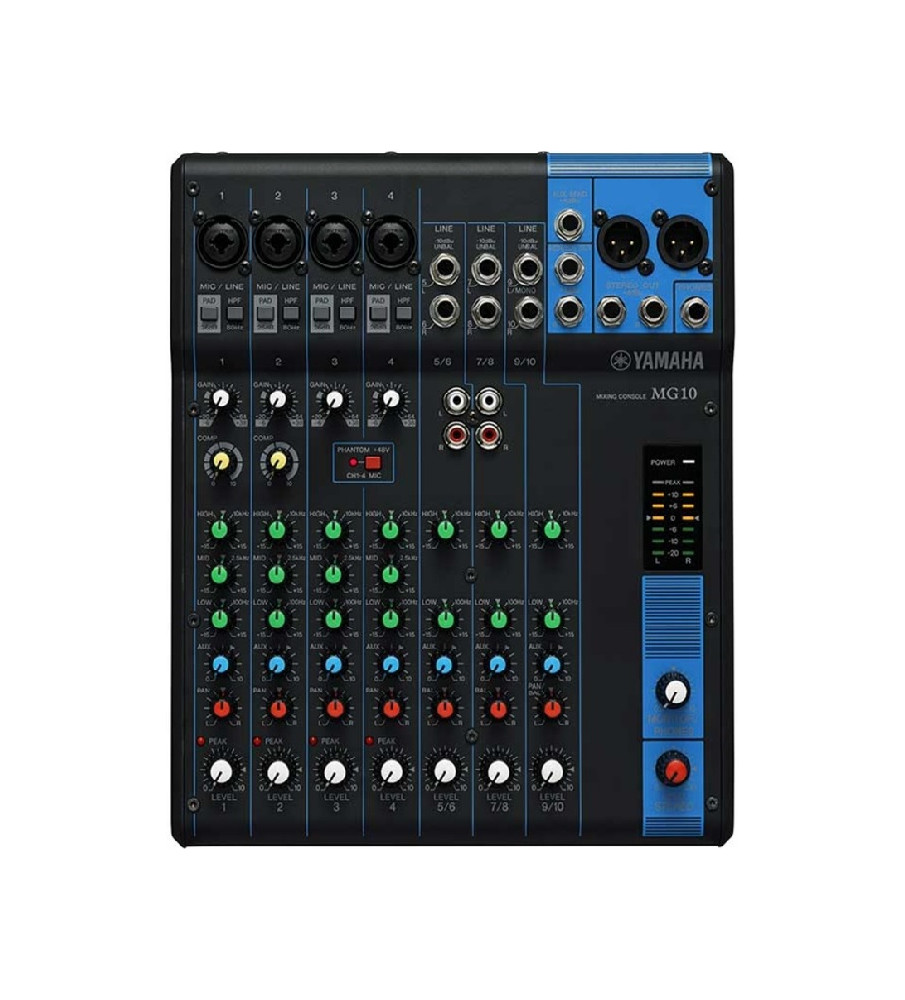

Yamaha MG10//A

Yamaha MG10//A

$279.99 Save $60.00
$339.99
Tax included

Yamaha MG10//A

10-Channel Mixing Console: Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX

Overview:

  • Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)

  • 1 Stereo Bus

  • 1 AUX

  • “D-PRE” mic preamps with an inverted Darlington circuit

  • 1-Knob compressors

  • PAD switch on mono inputs

  • +48V phantom power

  • XLR balanced outputs

  • Metal chassis

  • Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")

  • Net Weight: 1.9 kg (4.19 lbs.)

Specifications:

I/O

Phantom power

+48 V

Input Channels

Mono[MIC/LINE]

4

Stereo[LINE]

3

Output Channels

STEREO OUT

2

MONITOR OUT

1

PHONES

1

AUX SEND

1

Bus

Stereo: 1, AUX[FX]: 1

Input Channel Function

PAD

26 dB (Mono)

HPF

80 Hz, 12 dB/oct (Mono)

COMP

1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec

EQ HIGH

Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving

EQ MID

Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking

EQ LOW

Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

PEAK LED

LED turns on when post EQ signal reaches 3 dB below clipping

Level Meter

2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

specifications

Total harmonic distortion

0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min

Frequency response

+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level

Equivalent input noise

-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)

Residual output noise

-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)

Crosstalk

-83 dB

Power requirements

PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha

Power consumption

22.9 W

Dimensions

W

244 mm (9.6")

H

71 mm (2.8")

D

294 mm (11.6")

Net weight

1.9 kg (4.19 lbs.)

Accessories

Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A

Others

Operating Temperature: 0 to +40˚C



: MG10//A
