Overview:

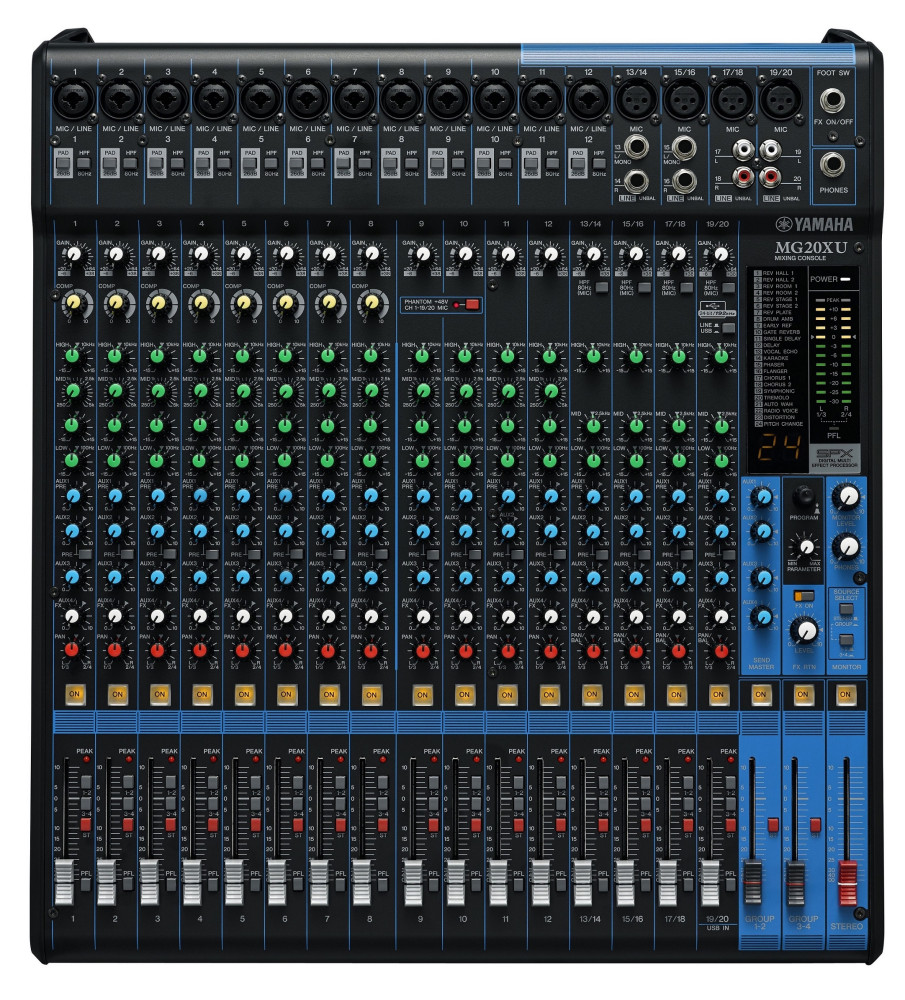

20-Channel Mixing Console
Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
4 GROUP Buses + 1 Stereo Bus
4 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit/192kHz 2in/2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase AI DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Rack Mount Kit Included
Metal chassis
Dimensions(W×H×D): 444 mm x 130 mm x 500 m (17.5" x 5.1" x 19.7")
Net Weight: 7.1kg (15.7 lbs.)
Outline
|
Mixing capability
|
On-board processors
|
SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
|
|
I/O
|
Phantom power
|
+48 V
|
|
Digital I/O
|
USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
|
|
Input Channels
|
Mono[MIC/LINE]
|
12
|
|
Mono/Stereo[MIC/LINE]
|
4
|
|
Output Channels
|
STEREO OUT
|
2
|
|
MONITOR OUT
|
1
|
|
PHONES
|
1
|
|
AUX SEND
|
4
|
|
GROUP OUT
|
4
|
|
Bus
|
Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
|
|
Input Channel Function
|
PAD
|
26 dB (Mono)
|
|
HPF
|
80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
|
|
COMP
|
1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
|
|
EQ HIGH
|
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
|
|
EQ MID
|
Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
|
|
EQ LOW
|
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
|
|
PEAK LED
|
LED turns on when post EQ signal reaches 3 dB below clipping
|
|
Level Meter
|
2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
|
General specifications
|
Total harmonic distortion
|
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
|
|
Frequency response
|
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
|
|
Hum & noise level
|
Equivalent input noise
|
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
|
|
Residual output noise
|
-102 dBu (STEREO OUT, STEREO master fader: Min)
|
|
Crosstalk
|
-78 dB
|
|
Power requirements
|
AC 100 – 240 V, 50 / 60 Hz
|
|
Power consumption
|
36 W
|
|
Dimensions
|
W
|
444 mm (17.5")
|
|
H
|
130 mm (5.1")
|
|
