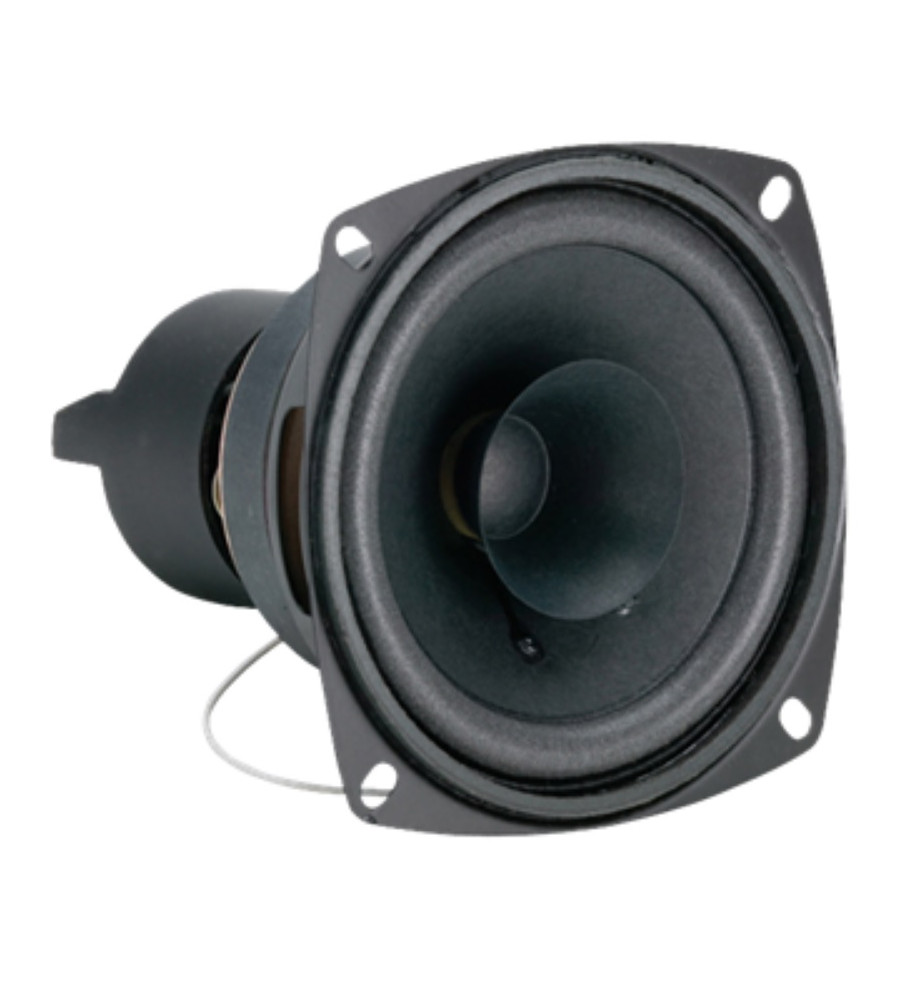

Australian Monitor ATC5101-6 5 Watts, 100V Speaker

Name: Australian Monitor ATC5101-6 5 Watts, 100V Speaker
Brand: Australian Monitor
SKU: AJ-ATC5101-6
Price: 44 AUD
Availability: PreOrder

$44.00 Save $8.00

$52.00

Tax included

Australian Monitor ATC5101-6
4” Dual Cone Driver

The ATC5101-6 is high quality 4-inch surface mount ceiling speaker. Designed for the Evacuation and general PA market, the ATC5101-6 offers a 5-position terminal block, line supervisory capacitor and transformer cover as standard. It has a wide frequency response and extremely high sensitivity critical to these markets.

EVAC/EWIS Speaker
4" dual cone driver

· 4-inch dual cone driver

· 100v tapings 5,2.5,1,0.5,0.33 watts

· 92 dB 1 watt @ 1 meter

· EVAC cap installed.

· Cutout diameter 115mm

· Depth 110mm

SPECIFICATIONS

· Form Factor: Ceiling

· Max Continuous Power: 5W

· Tappings: 5W-2.5W-1W-0.5W-0.33W

· Max Program Power: 10W

· IP Rating: No

· Max Peak Power: 20W

· EASE Model: No

· SPL 1W/1m: 92dB

· Powered: Passive

· Max SPL RMS: 99dB

· Driver Diameter: 4"

· Max SPL Peak: 105dB

· Colour: White

· Frequency Response (-3dB): 75Hz - 20kHz

· Warranty: 5 years

· Dispersion: 160deg

· GTIN EAN: 9323383010390

Technical Specifications

Brands	Australian Monitor
Size	4"
Speaker Type	In-ceiling

Reference : AJ-ATC5101-6
