Australian Monitor AJ-ATC5010-6 10W, 100V TX Speaker

Name: Australian Monitor AJ-ATC5010-6 10W, 100V TX Speaker
Brand: Australian Monitor
SKU: AJ-ATC5010-6
Price: 44 AUD
Availability: PreOrder

$44.00 Save $10.00

$54.00

Tax included

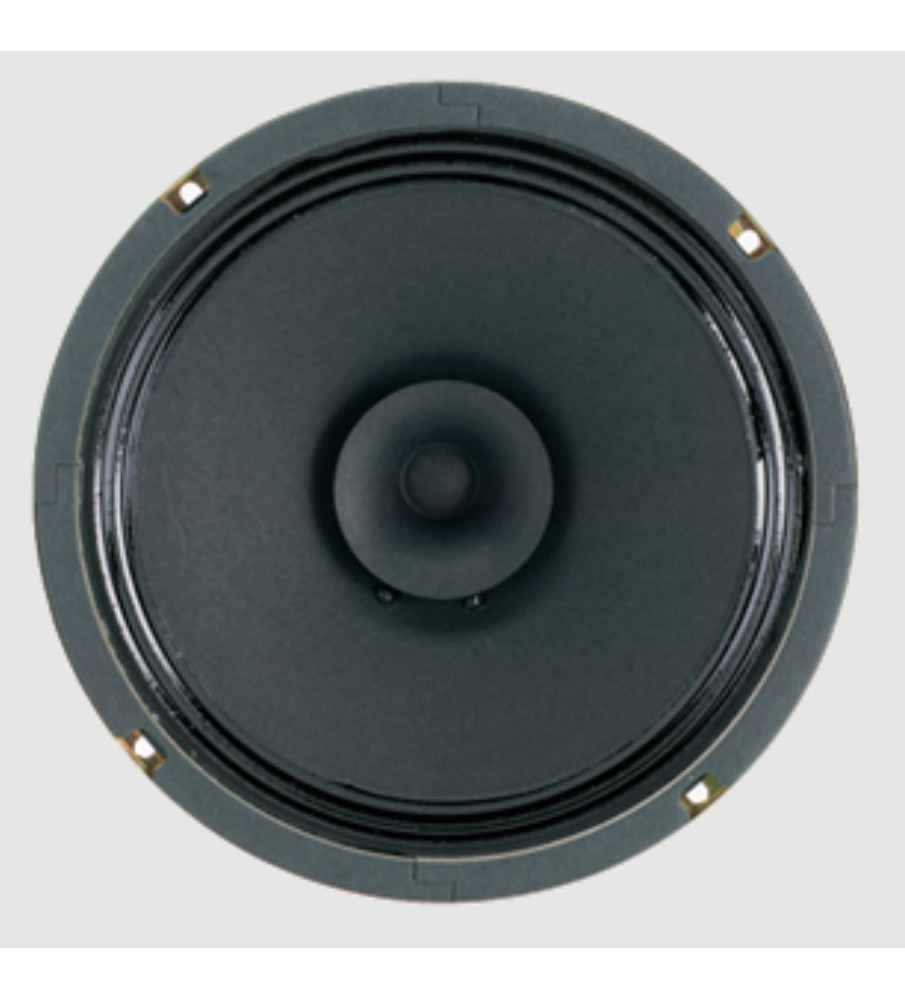

Australian Monitor AJ-ATC5010-6
8" Surface Mount Ceiling Speaker

The ATC5010-6 is high quality 8 inch surface mount ceiling speaker.Designed for the Evacuation and general PA market, the ATC5010-6 offers a 5 position terminal block, line supervisory capacitor and transformer cover as standard. It has a wide frequency response and extremely high sensitivity critical to these markets.

· 8-inch dual cone driver

· 100v tappings 5,2.5,1,0.5,0.33 watts

· 93 dB 1 watt @ 1 meter

· EVAC cap installed.

· Cutout diameter 205mm

· Depth 96mm

Specification

· Form Factor: Ceiling

· Max Continuous Power: 5W

· Tappings: 5W-2.5W-1W-0.5W-0.33W

· Max Program Power: 10W

· IP Rating: No

· Max Peak Power: 20W

· EASE Model: No

· SPL 1W/1m: 93dB

· Powered: Passive

· Max SPL RMS: 100dB

· Driver Diameter: 8"

· Max SPL Peak: 106dB

· Colour: White

· Frequency Response (-3dB): 50Hz - 20kHz

· Warranty: 5 years

· Dispersion: 140deg

Technical Specifications

Brands	Australian Monitor
Size	8"
Speaker Type	In-ceiling

Reference : AJ-ATC5010-6
