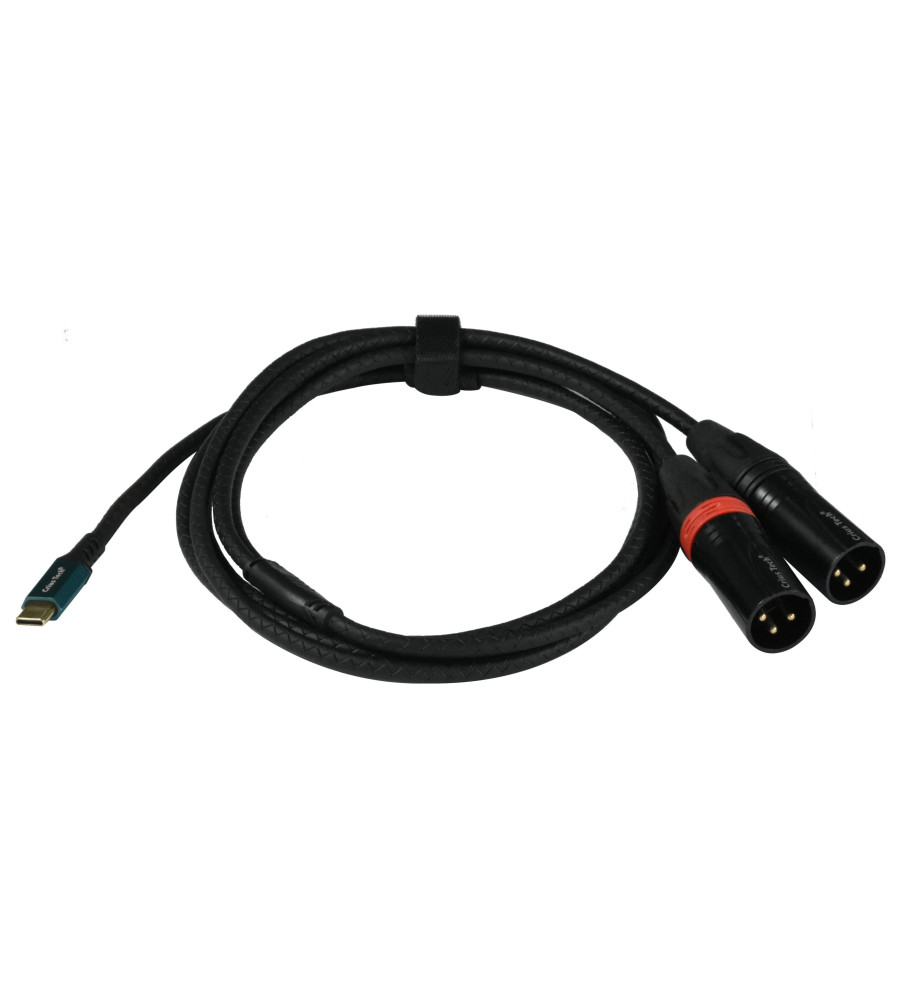

2mtr USBC to dual 3pin, Male, XLR signal lead, with DAC
Order Code: USBC-DX-2M
|
USBC-DX-2M Specifications |
|
|
Electrical |
|
|
Contact Resistance |
≤10mΩ |
|
Insulation Resistance |
≥1.5 GΩ(Initial) |
|
Dielectric Strength |
0.5 KVdc |
|
Mechanical Insertion and Withdrawal Force: |
≤60N |
|
Lifetime Mating Cycles |
>1,000 |
|
Material |
|
|
3pin insert (F/M) |
PA6+30%GF |
|
Contact（M） |
QSn6.5-0.1 |
|
Pin (F) |
Hpb59-1 |
|
Ground Contact |
Stainless steel cold-rolled strip |
|
Bushing (F/M
|
|
|
Bush |
PA6+30%GF+PVC |
|
Boot |
PVC |
|
Chuck |
ABS |
|
Housing+Latch (F/M) |
Zinc |
|
Ring |
rubber |
|
Cable |
OFC |
|
Plating |
|
|
Pin & Contact |
Gold Plating |
|
GND Contact |
Tin Plating |
|
Housing (F/M) |
Black Plating |
|
Latch |
Nickel Plating |
|
Length |
2mtr |
