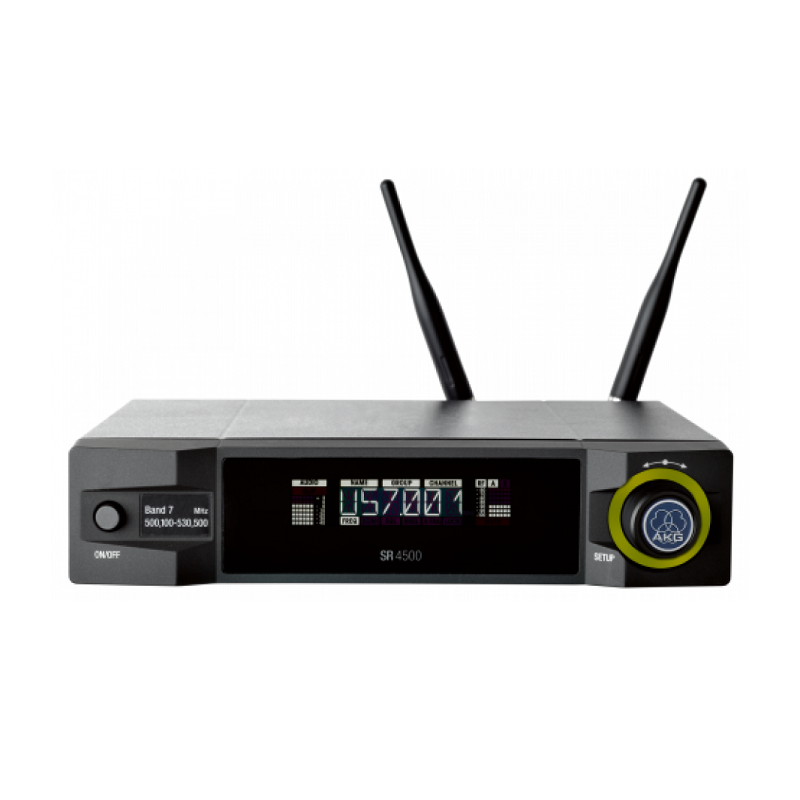

The SR4500 analog true diversity reference wireless receiver provides maximum ease of use with an automatic setup function and scan of the radio frequency environment. The rehearsal mode supports the engineer during soundchecks with information on the systems signal quality. The programmable status monitor shows all relevant system information on an illuminated multicolor LED ring. Its precise battery life readout in hours is a valuable advantage in wireless applications. A wide range of professional antenna splitters, power supplies and high-quality remote antennas is available to set up a reliable wireless system, even in a large area.

General Specifications

Switching bandwidth 30 MHz

Recommended simultaneous channels 50

Number of selectable frequencies 1220 (selectable in 25kHz steps)

Frequency Selection Selectable frequency in 25kHz steps

Radio range (Line of sight) 100m (depending on antenna system)

Modulation FM (Frequency Modulation)

Encryption No encryption

Diversity True Diversity

Audio Output

Amount 1

Gender Female

Contacts 3-pin

Note Unbalanced Audio Output
