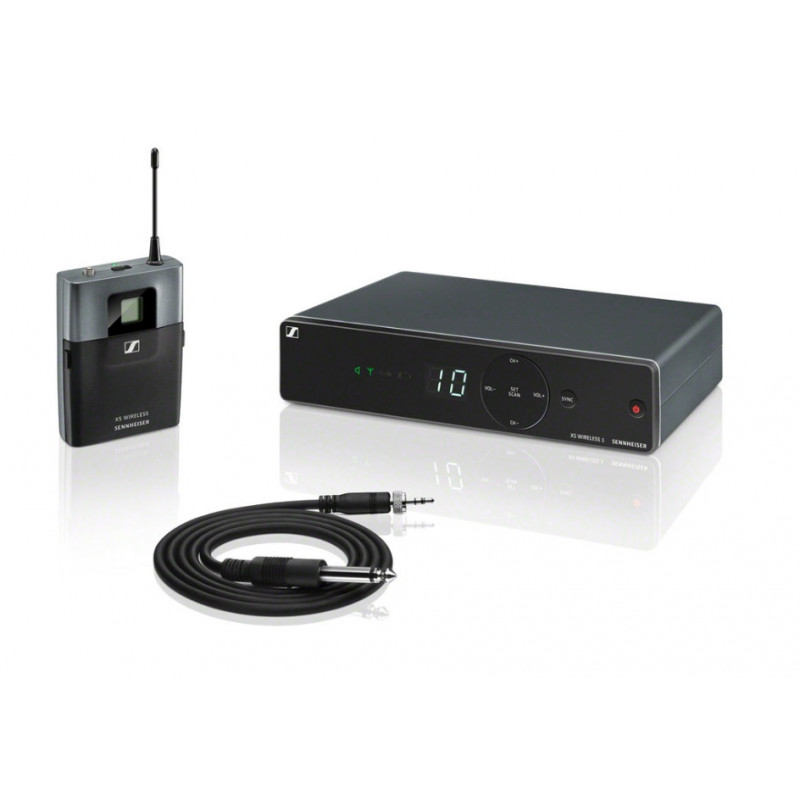

Sennheiser XSW1-CI1-B Instrument Set 614-638MHz

Features
Compact bodypack transmitter, rugged instrument cable
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels

     Included
     1 receiver EM-XSW 1
       1 bodypack transmitter SK-XSW
       1 instrument cable Cl1
       1 power supply NT 12-5 CW
       2 AA batteries

       Shipping Dims:
        Packed Dims (cm set): 34*35*8.5
        Packed Weight (kg set): 1.28


Technical Data
Dimensions:
Receiver: approx. 200 x 42 x 127 mm
Bodypack transmitter: approx. 71 x 96 x 28 mm
THD, total harmonic distortion       ≤ 0.9%

Weight                                             approx. 340g (receiver), approx. 95g (transmitter)

Signal-to-noise ratio                       ≥ 103 dBA

RF output power                             10 mW

Switching bandwidth                     up to 24 MHz

Operating time                                approx. 10 hrs

Modulation                                      Wideband FM

Power supply                                  Receiver: 12 V DC nom. / 300 mA
                                                        Transmitter: 2 AA size batteries, 1.5 V

Output voltage                                          1/4“(6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

Housing                                                     Rugged ABS housing

Frequency                                                 8 frequency banks, each with up to 10 factory-preset channels

Frequency range                                      B: 614-638 MHz

Sensitivity                                                 < 3 μV at 52 dB(A)rms S/N

SPL for peak deviation                            130 dB

Squelch                                                     Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)

Synchronization                                       2.4 GHz, Low Power OQPSK (only active during synchronization)

Input sensitivity                                       1.5 mV / Pa

AF frequency response                           Receiver: 50 to 16,000 Hz (–3 dB)

Adjustment Range Transmitter              0 to -30 dB, adjustable in 10 dB steps

Audio adjustment range                         45 dB, adjustable in 5-dB steps

Line / Mic level                                         20 dB, switchable

Temperature Range                                 operation: 0°C to +40°C, storage: –20°C to +70°C

Receiver Principle                                   double superheterodyne

Diversity principle                                   Antenna switching diversity via internal antennas

Item Number 506995
