Overview

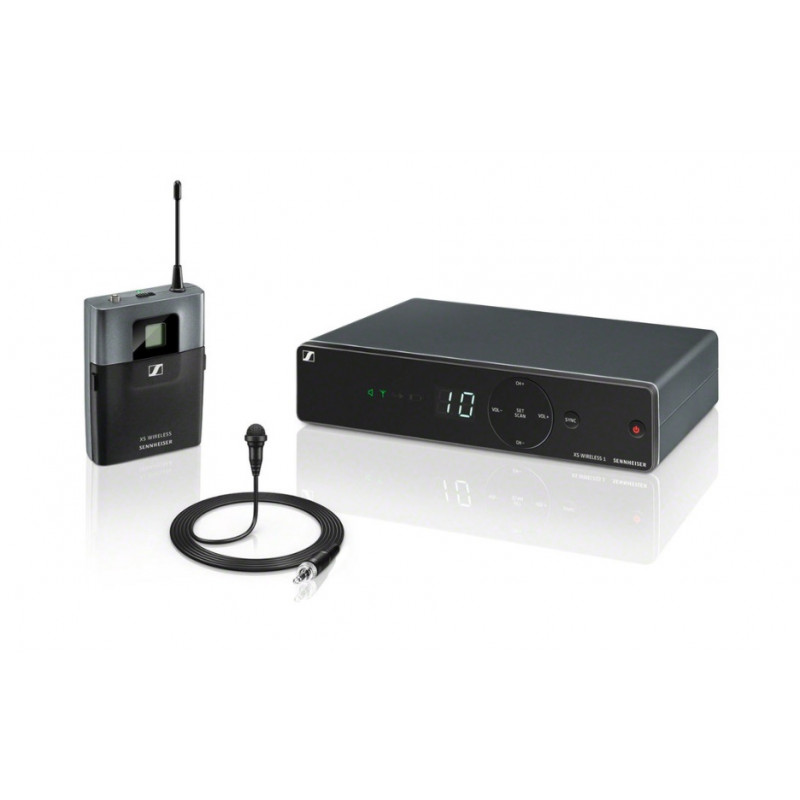

Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.
Features
Compact bodypack transmitter, unobstrusive clip-on microphone
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels
Included
1 receiver EM-XSW 1
1 lavalier microphone ME 2-2
1 bodypack transmitter SK-XSW
1 power supply NT 12-5 CW
2 AA batteries
Shipping Dims:
Packed Dims (cm set): 34*34.5*8.5
Packed Weight (kg set): 1.26
Technical Data
Receivers
Dimensions approx.200*42*127mm
Weight approx. 340g
Power supply 12 V DC nom. / 300mA
AF frequency response 50 to 16,000 Hz (–3 dB)
Transmitter
Dimensions approx.71*96*28 mm
Weight approx. 95g
Power supply 2 AA size batteries, 1.5V
Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
Microphone Condenser
THD, total harmonic distortion <=0.9%
Pick-up pattern omni-directional
Signal-to-noise ratio >=103dBA
RF output power 10mW
Switching bandwidth up to 24 MHz
Operating time approx.10hrs
Modulation wideband FM
Output voltage 1/4 “(6.3mm) jack socket (unbalanced): +6 dBu, XLR socket”
(balanced): +12dBu
Housing rugged ABS housing
Diversity reception antenna switching diversity via internal antennas
Frequency 8 frequency banks, each with up to 10 factory-preset channels
Frequency range A: 548-572 MHz
Sensitivity < 3 μV at 52 dB(A)rms S/N
SPL for peak deviation 130dB
Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity 1.5 mV / Pa
Audio adjustment range 45 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle double superheterodyne
Item Number_ 506
