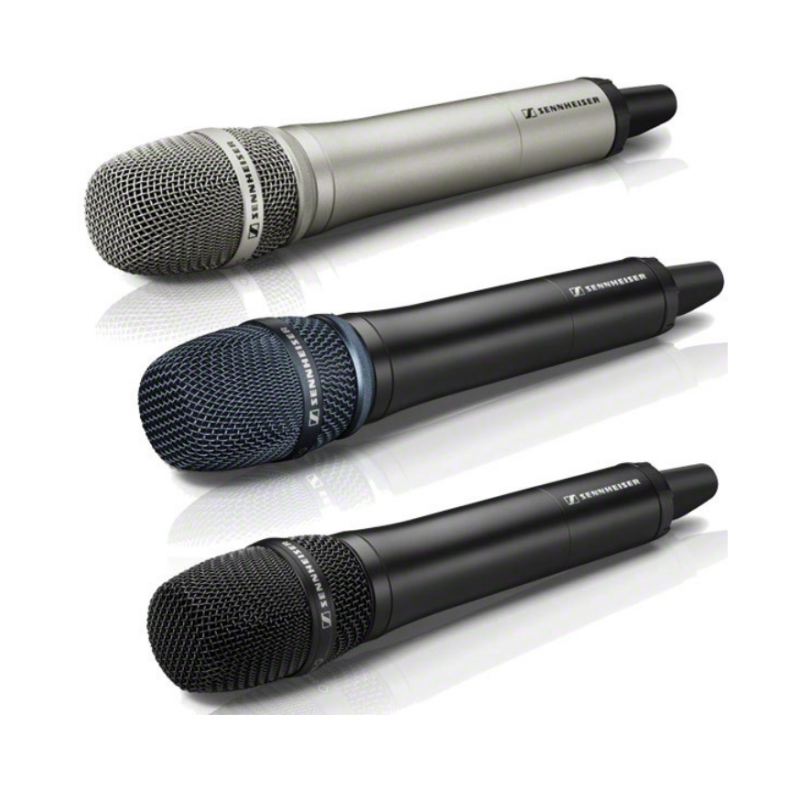

Sennheiser SKM 2000XP BK-BW
Handheld Transmitter Without Capsule, 626-694 MHz
Overview
It's all in the design. The hand-held transmitter of the 2000 series shows its strength: during use, in its performance, in its features. Sennheiser's technical know-how is shown through its switchable transmission power, intuitive menu navigation, an easy-to-read graphic display and external charging contacts for charging the optional rechargeable batteries directly. SKM 2000 is compatible with all ew capsules, including the MMK 965-1 true condenser capsule, whose wired version, e 965, has already proven to be a great success. Colors: Nickel and black
Features
Rugged metal housing
Up to 75 MHz switching bandwidth
20 fixed frequency bands with up to 64 compatible presets
6 banks each with up to 64 tunable channels
Frequency setting in 25 kHz steps
Pilot tone squelch for interference-free operation
External charging contacts for recharging battery BA 2015 in the transmitter
Backlit display on transmitter (keystroke activation)
Auto-lock feature to prevent buttons from accidently being pressed
Audio and RF MUTE feature for muting the transmitter
Transmitters can be configured from the receiver menu
Possible to synchronize with the receiver using infrared interface
Wide range of accessories for virtually any use
Included
1 SKM 2000 hand-held transmitter
2 AA 1.5 V batteries
1 microphone clip
8 color-coded rings
1 instruction manual
1 supplementary frequency sheet
1 supplementary RF power sheet
Shipping Dimensions:
Packed Dims (cm set): 7*14*35
Packed Weight (kg set): 0.96
Technical Data
Color nickel / black
Frequency range 626-694 MHz
Dimensions 50*265mm
Compander HDX
Presets max. 64
THD, total harmonic distortion < 0,9 %
Weight 450g
Signal-to-noise ratio ≥ 120 dBA (@ 1 mV peak deviation)
RF frequency range 516...865 MHz
RF output power 10, 30, 50 mW (US : 100 mW)
Switching bandwidth max. 75 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
In compliance with CE, FCC IC
Operating time typ. 8 h
Modulation FM
Power supply 2 x 1,5V (AA)
Carrier frequencies max. 3000
