Order Code: PT-470

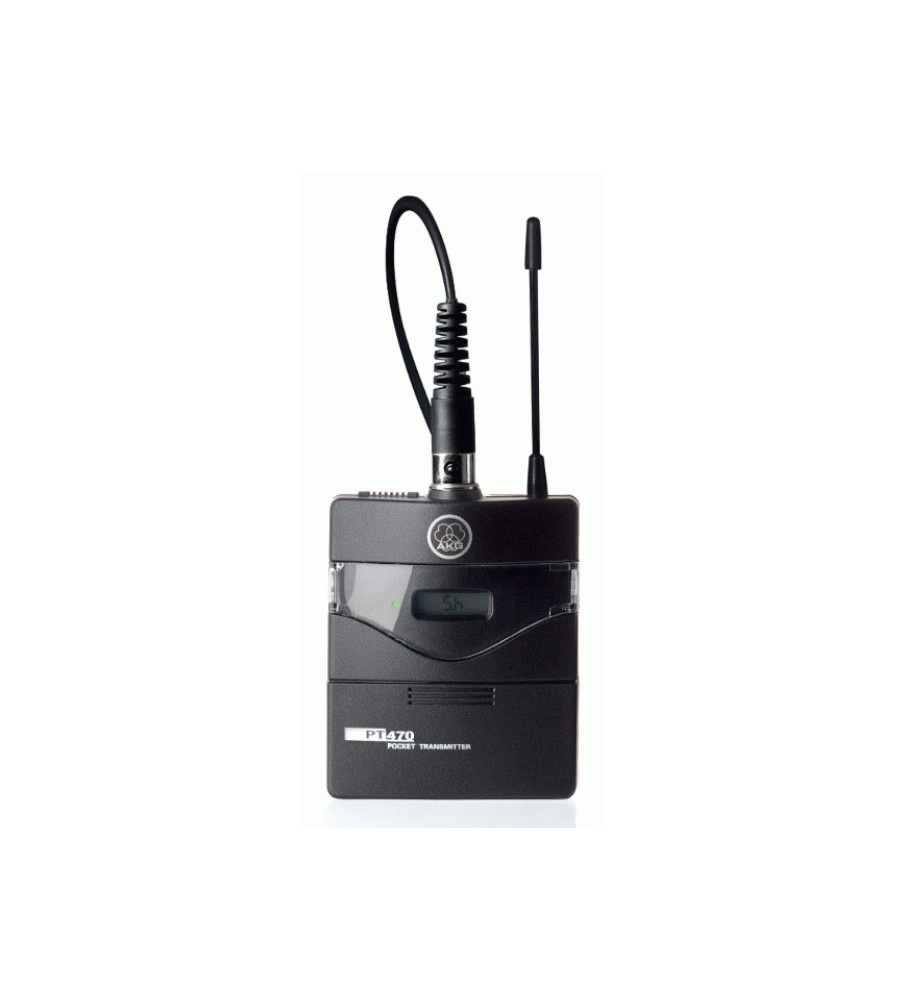

The PT470 is an analog professional wireless body-pack transmitter in a small, rugged housing. A pilot tone transmission prevents unexpected startup noise, continuously sending transmitter data, including low battery information, to the receiver. An enhanced battery management allows up to 14 hours of operation on a single AA-size battery. With the integrated charging contacts, a standard NiMH rechargeable battery can be charged inside the transmitter. An optional RMS4000 external mute switch allows the user to mute the transmitter remotely. Its professional mini XLR audio connector makes the body pack compatible with a broad range of lavalieres and headsets.
General Specifications
Audio frequency bandwidth 35 - 20000 Hz
Signal to Noise 120 dB-A
THD at 1 kHz 0.7 Prozent
Peak deviation 48 kHz
Nominal deviation 20 kHz
Radio Output Power (min/max) 10 to 50 mW
Transmitter Synchronization Infrared
Mute Switch Type Jack Mono (1/4")
Mute Switch Gender Female
Switching bandwidth 30 MHz
Recommended simultaneous channels 24
Number of selectable frequencies 1220 (selectable in 25kHz steps)
Frequency Selection Selectable frequency in 25kHz steps
Radio range (Line of sight) 100m (depending on antenna system)
Switchable RF power no
Pilot Tone yes
Dimensions
Length 30 mm
Height 73.5 mm
Width 60 mm
Design
Body Plastic
Finish black
Audio Input
Type Mini XLR
Gender Female
Contacts 3-pin
Maximum audio level 12 dB
Battery
Battery type FR 6 AA lithium battery
Number of batteries 1
Operating time 14 h
Battery 1
Battery type LR6 AA alkaline Battery
Number of batteries 1
Operating time 7 h
Battery 2
Battery type HR 6 AA (NiHM) rechargeable battery
Compatibel Charging System CU400
Number of batteries 1
Operating time 8 h
Order Code: PT-470
