Australian Monitor AJ-ZONEMIX8 8 Zone Controller

Name: Australian Monitor AJ-ZONEMIX8 8 Zone Controller
Brand: Australian Monitor
SKU: AJ-ZONEMIX8
Price: 2300 AUD
Availability: PreOrder

$2,300.00 Save $185.00

$2,485.00

Tax included

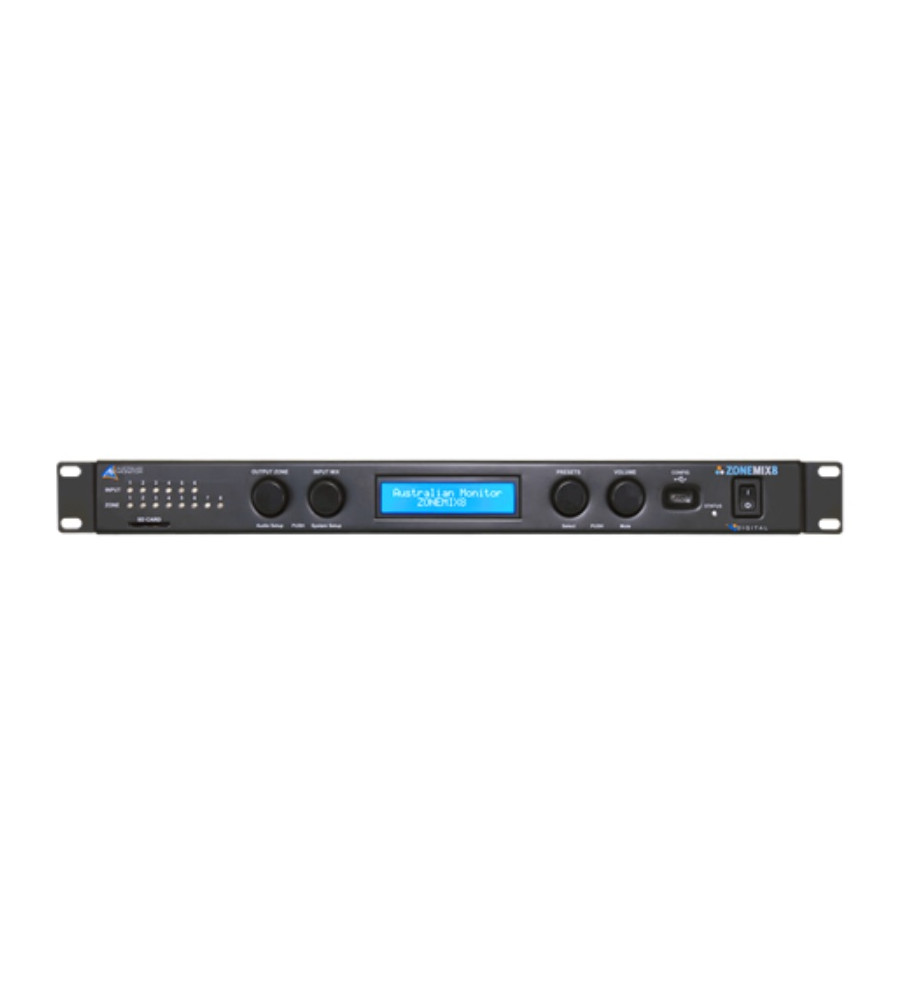

Australian Monitor AJ-ZONEMIX8
8 Zone Mixer

The ZONEMIX8 provides an 8-zone mixing and paging solution featuring USB, Ethernet, and RS232 connectivity. Optional wall panel accessories include 3 controller models, a Bluetooth receiver, and a mic/line level input. A PC application allows for setup and control of the ZONEMIX and customisation of the wall panels and paging stations.

Features:

· Input/Output Mixing: - 2 mic/line and 4-line inputs to 8 zone outputs.

· miniDSP

· Built in EVAC, Intruder, Bell, and Chime tones.

· Tone can be customised via SD Card (not supplied)

· Custom messages can be stored on the SD Card and triggered via the scheduler, contact closure, ZMPS paging station or wall panels.

· Multi-level priority

· COMING SOON Scheduler to trigger global, or zone presets, contract closure ourputs, tones and pre-recorded messages.

· COMING SOON 8 contact closure inputs and outputs

· Supports one local audio input per output zone.

Technical Specifications

Brands	Australian Monitor
Product type	Mixer Controller
Zones	8 Zones

Specifications

INPUTS/OUTPUTS
Zone Outputs	8
Output Mode	Stereo/Mono
Mic/Line Inputs	2
Line Inputs	4
Local Audio Inputs	8
Paging Stations	Up to 16
Wall Panels	Up to 16
CONTROL
User Controls	Front Panel, Wall Panels
Communication Interface	USB-C, Ethernet, RS232
General Purpose I/O	8 in 8 out
Tone Generator	5 Tones
SD Card	WAV: PCM, 16 bits, up to 48kHz sample rate
AUDIO PERFORMANCE
Frequency Response	20Hz -20kHz
THD	<0.01%
SNR	>100dBA
MECHANICAL
Dimensions (W x D x H)	484 x 160 x 44.5mm
Weight	2.4 kg
Unit Height	1RU
Input Voltage	24VDC
Power Consumption	8W

Reference : AJ-ZONEMIX8
