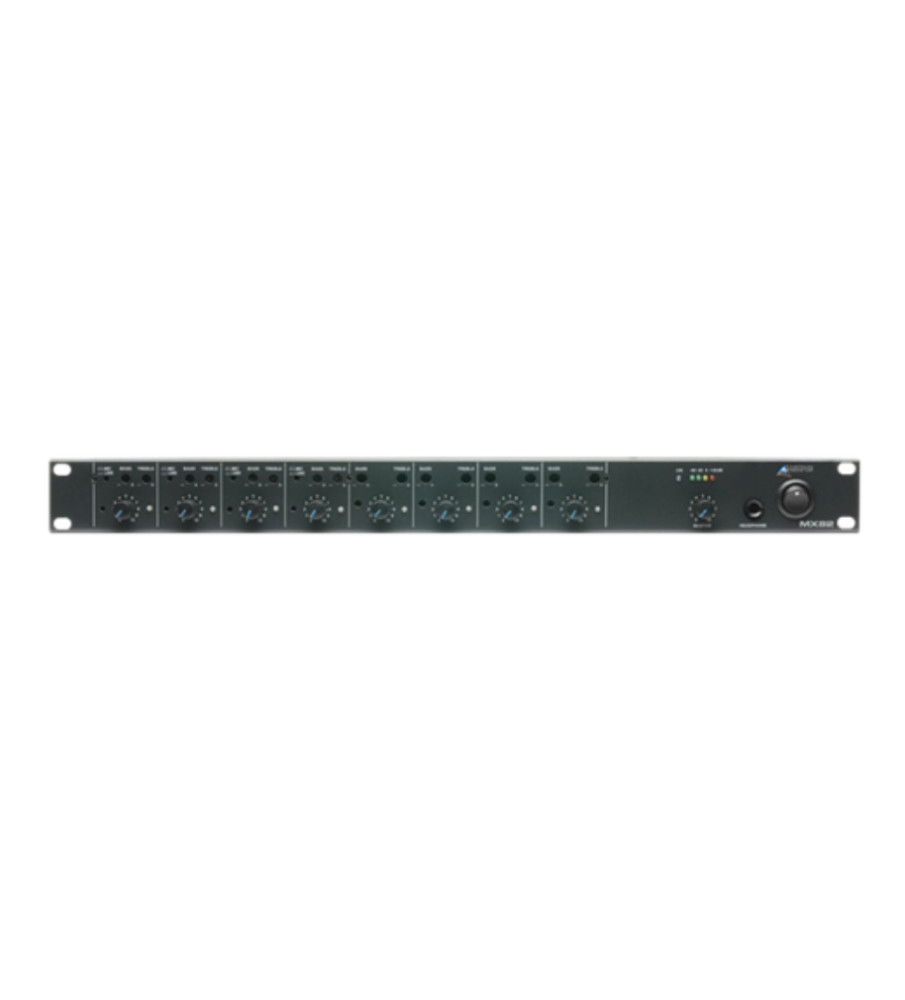

Australian Monitor AJ-MX82
8 Channel Stereo Mixer
4 XLR, 4 RCA inputs
The MX82 is a 1RU stereo mixer that features four mic/line inputs and four stereo inputs.
Each of the four mic/line channels consists of a balanced XLR input switchable between mic and line level, 15dB of gain trim across the mic/line inputs plus individually switchable phantom power (15VDC). The first 4 channels also feature a line level direct output which can be used to feed additional amplifiers, mixers or recording devices.
An internal dip switch allows the first 4 inputs to be routed to the direct output, the master outputs or both. You can also feed the optional tone generator (AMTONE1) to the direct outs if required. Input 1 can also be pre or postmaster if you require, allowing it to be used as a priority (or emergency) input. Inputs 5-8 are four dedicated stereo RCA aux/line level inputs.
Features:
4 XLR inputs switchable between microphone and line level, each with direct output
• 4 stereo dual RCA line level inputs. Each input has front panel microphone/line switching (inputs1-4), treble and bass control, +/-15dB of gain trim and dual colour status LED indication
• Single master volume control
• Phantom power individually switchable for XLR inputs
• Priority muting via optional muting modules (AMMUTE1 or AMMUTE3). 2 required.
• Remote Volume Controlled Attenutation (VCA) via optional module (AMVCA). 2 required.
• Tone generation via optional module (AMTONE1)
Technical Specifications
|
Brands |
Australian Monitor |
|
Product type |
Mixer |
Specifications
· Total Inputs: 8
· Frequency Response: 20Hz - 20kHz
· Input Channels: 8 MIC or Line
· THD+N: < 0.1%
· Output Channels: 1 Stereo
· Signal to Noise Ratio: > 90dB.
· Mounting: 1RU
· Input Sensitivity MIC: 4.36mV / Line: 775mV / RCA: 200mV.
· Warranty: 5 years
· Input Voltage: 230Vac 50Hz.
· Product Dimensions:
· (W x D x H) 482mm x 182mm x 44mm Shipping Dimensions
· (W x D x H) 500mm x 267mm x 94mm
· Net Weight: 2.8 Kg
· Shipping Weight: 3.8 Kg
· GTIN EAN: 9323383011106
